Sowa Tool
162914

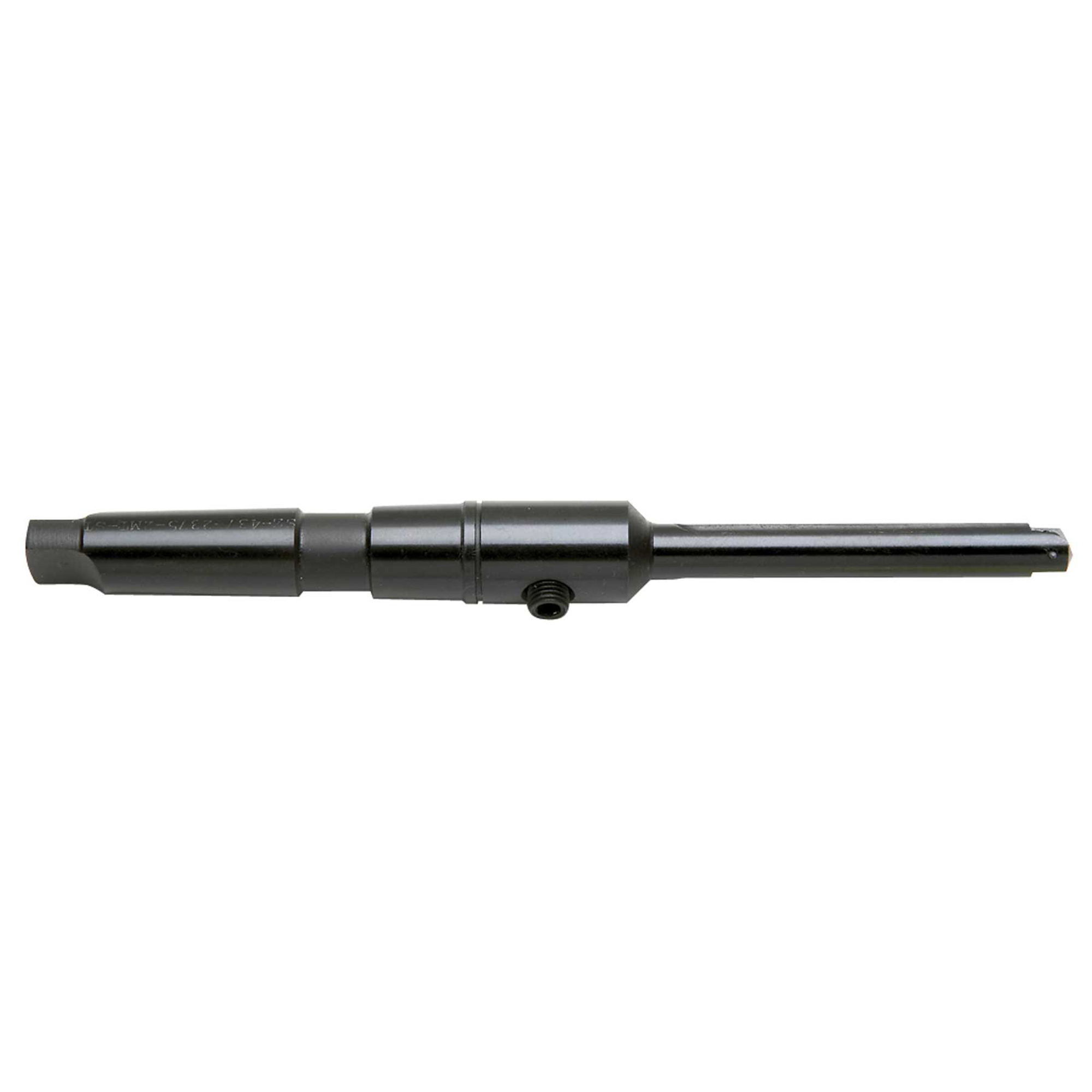

Series #4 MT5 Short Length Taper Shank Straight Flute Spade Drill
Specifications
| Diameter (Inch) | 1-29/32 |
|---|---|
| Flute Length (Inch) | 6-1/2 |
| Overall Length (Inch) | 14-5/16 |
| Flute Type | Straight |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Flute Length (Inch) : 6-1/2"<br>• Body Length (Inch) : 8-5/8"<br>• Pipe Tap : 1/4" |
| Diameter | 1-29/32 Inch |
| Unit Of Measure | Fractional |
| Shank Type | Morse Taper |
| Long Description | • Series: 4<br>• Minimum Drill Diameter (Inch): 1-29/32"<br>• Maximum Drill Diameter (Inch): 2-9/16"<br>• Shank Type: Morse Taper<br>• Shank Taper Size: MT5<br>• Spade Drill Length : Short<br>• Overall Length (Inch): 14-5/16"<br>• Maximum Drill Depth (Inch): 5-1/8"<br>• Flute Type: Straight Flute<br> |
| Series | 4 |
| Shank Taper Size | MT5 |
| Spade Drill Length | Short |
| Max. Drill Depth (Fractional) | 5-1/8 |
| Max. Drill Diameter (Fractional) | 2-9/16 |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
