Sowa Tool
231114

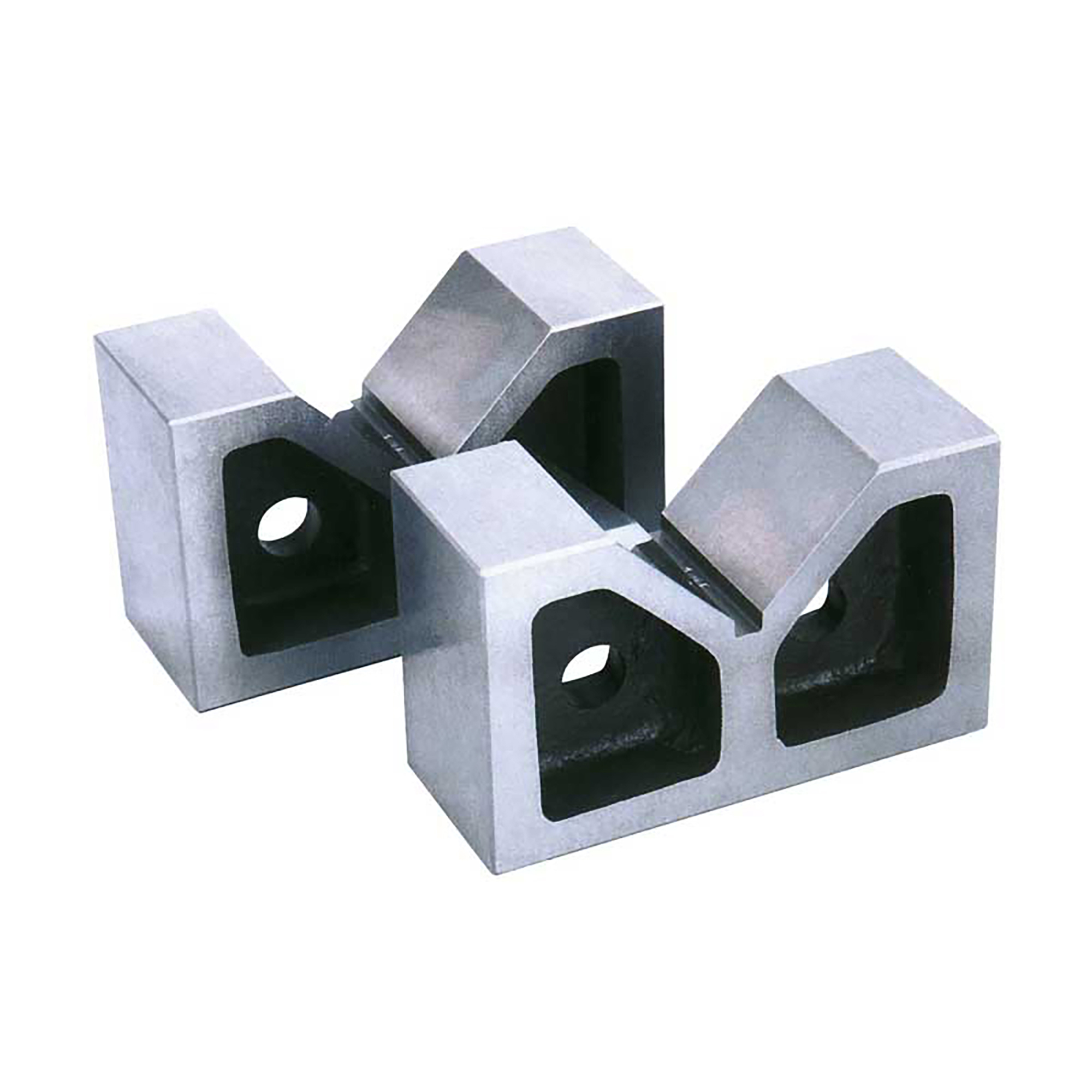

12" Cast Iron V-Block
Specifications
| Long Description | • Sold As: Pair<br>• Overall Length (Inch): 12"<br>• Overall Width (Inch): 6"<br>• Overall Height (Inch): 8"<br>• V Angle: 90º<br>• Made from close grained cast iron, these blocks are precisely ground and machined square and parallel. • The Vee's are 90º centered in true. • The blocks are manufactured and supplied in numbered pairs and come in handy for holding large jobs where clamping is not necessary. • Squareness and Parallelism of Vee grooves: within 0.0012" (30 microns) |
|---|---|
| Short Description | • Brand: STM<br>• Magnetic : No<br>• Material : Cast Iron<br>• Model Number : VB/C-12<br>• Squareness Per 1 (Inch) (Decimal Inch) : 0.0012 |
| Overall Width (Inch) | 6" |
| Overall Height (Inch) | 8" |
| Overall Length (Inch) | 12" |
