Sowa Tool
310145

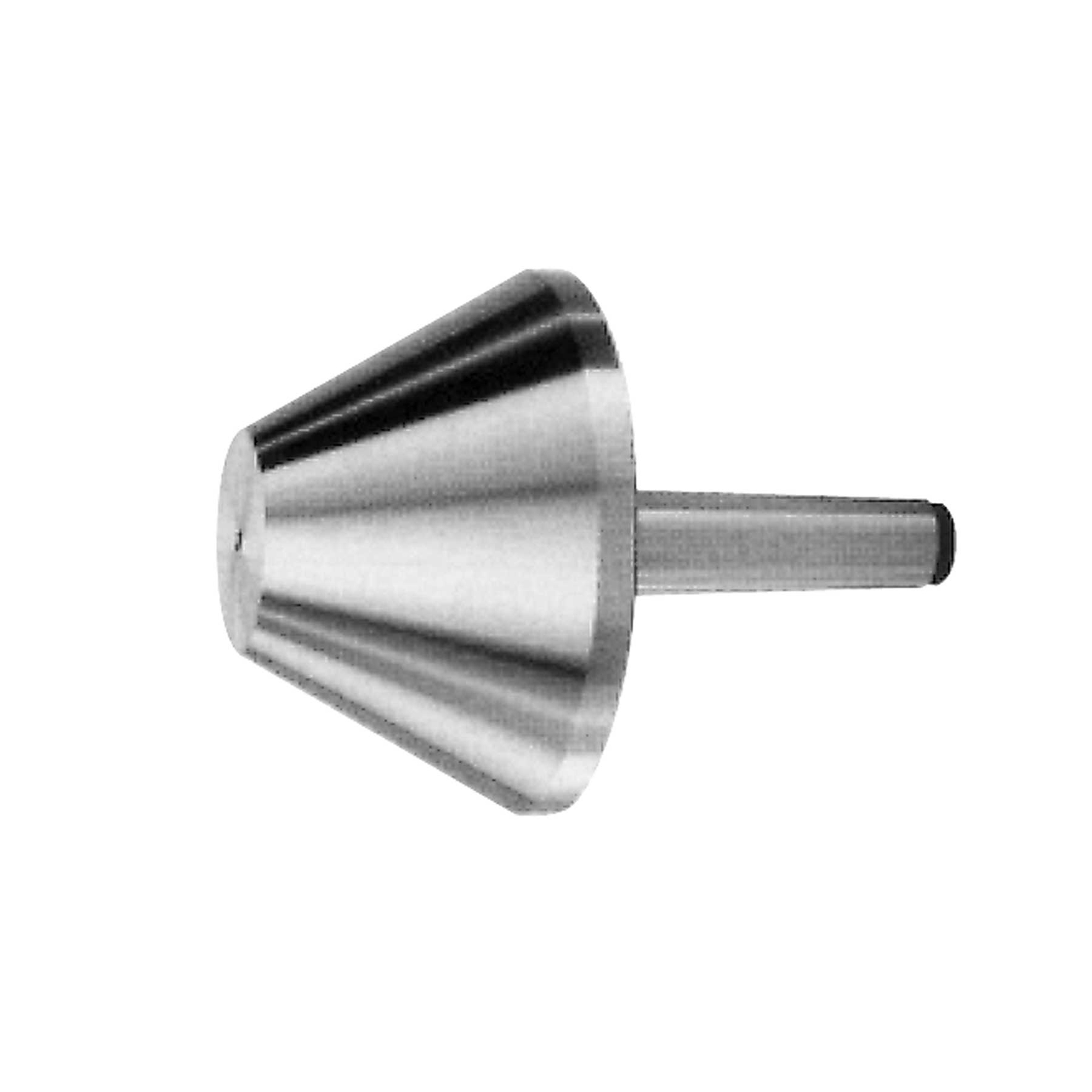

MT4 Skoda Heavy Duty Bull Nose Live Centre
Specifications
| Long Description | • Shank Type: Taper Shank<br>• Taper Size: MT4<br>• Maximum Workpiece Weight (Lb.): 2860<br>• Point Diameter (Decimal Inch): 4.527<br>• Tip Diameter (Decimal Inch): 1.732<br>Designed to hold pipe and hollow work. Pipe head can be used as an all-round centre for light work. Two matched angular contact bearings preloaded at the factory. This achieves good thrust and radial capacities. Bearings are protected by a combination steel shield and neoprene seal.<br>• Accuracy: ±0.0001" |
|---|---|
| Short Description | • Brand: Skoda<br>• Included Angle : 60º<br>• Model Number : CSN 243319<br>• Head Length (Decimal Inch) : 3.622<br>• Overall Length (Decimal Inch) : 7.637 |
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Tip Diameter (Inch) | 1.732 |
| Point Diameter (in) | 4.527 |
