Sowa Tool
310768

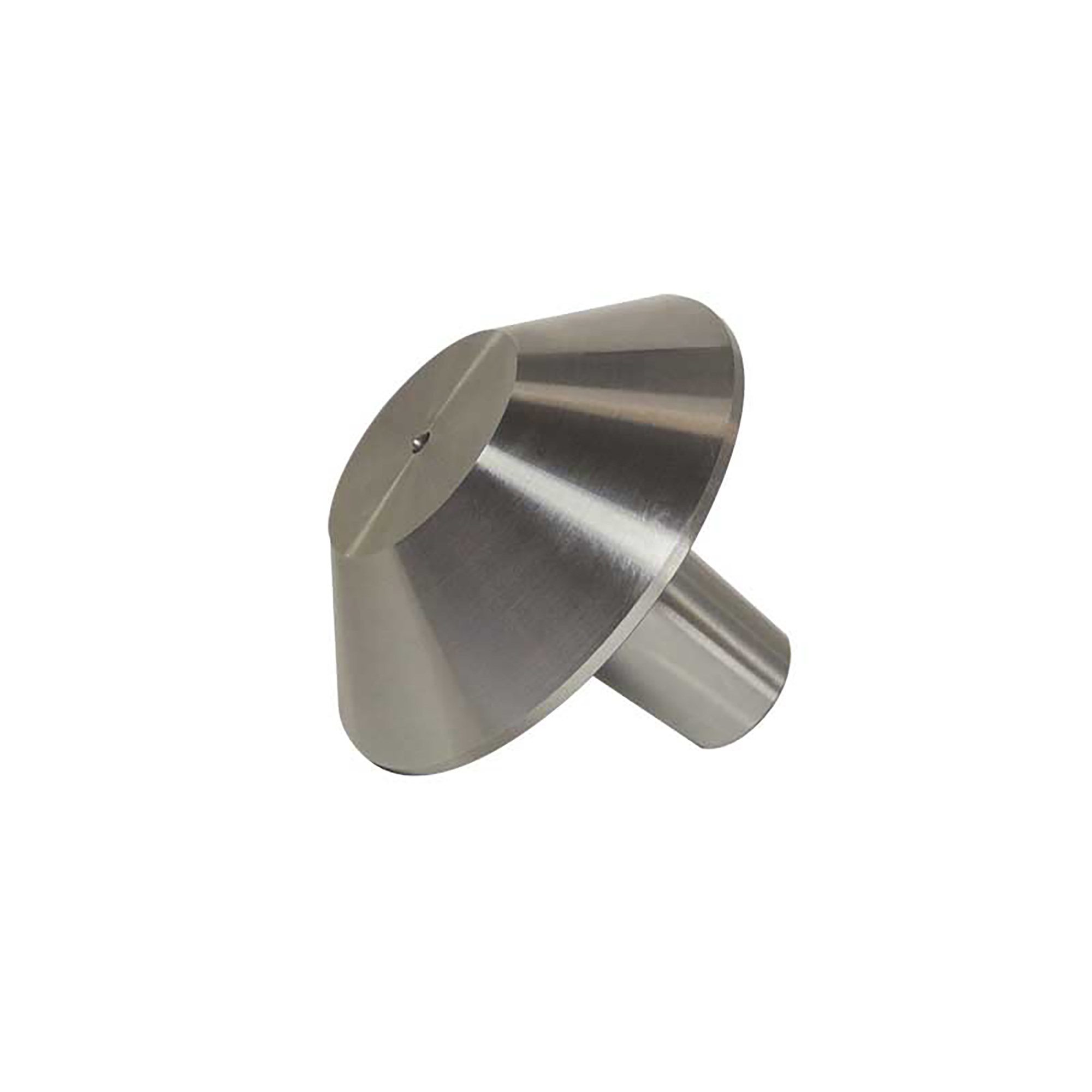

Bull Nose Point (C) For MT5 Skoda Live Centre Sets
Specifications
| Long Description | • Product Type: Point<br>• Point Style: Bull Nose Point<br>CSN 243326 <br> • The rotating spindle is extended right through the tapered shank<br>• Two specially designed adjustable needle-roller bearings carry all radial loads<br>• A heavy duty ball thrust bearing takes all axial thrust<br>• Complete protection of bearings from the ingress of coolant, dirt or swarf is provided by the built-in oil-seal, which also prevents loss of lubricant Set contains:<br>• Live centre body<br>• 7 interchangeable points (60º point, bullnose point, small bullnose point, 60º centerless point, 90º centerless point, toothed point, 60º reverse point)<br>• Drift key<br>• Wooden case <br>Maximum weight of workpiece is independent of the individual point being used. |
|---|---|
| Short Description | • Brand: Skoda<br>• For Taper : MT5<br>• Overall Length (Decimal Inch) : 2.559<br>• Point Diameter (Decimal Inch) : 3.149<br>• Tip Diameter (Decimal Inch) : 1.496<br>• Gauge Line Diameter (Decimal Inch) : 0.984<br>• Shank Length (Decimal Inch) : 1.496 |
| Product Type | Point |
| Point Style | Bull Nose Point |
