Sowa Tool
311018

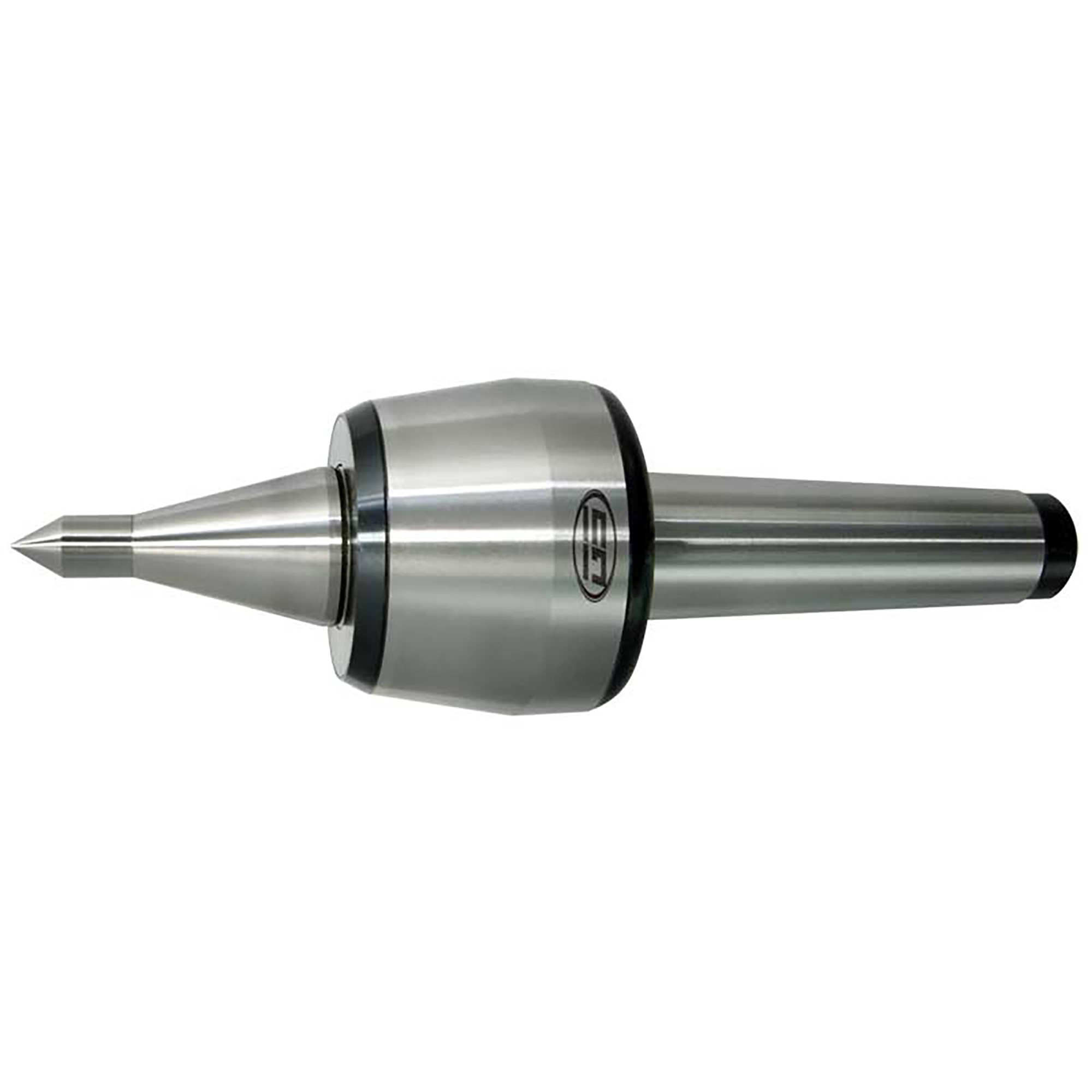

MT4 Long A Shaft CNC High Speed Live Center
Specifications
| Long Description | • Shank Type: Taper Shank<br>• Taper Size: MT4<br>• Maximum Workpiece Weight (kg): 550<br>• Point Diameter (mm): 12.5<br>• Accuracy guaranteed to 0.003mm TIR (0.0001")<br>• Excellent for CNC and conventional machines<br>• Heat treated point to HRC 60±2<br>• High performance lip seal and deflected shaft design protects bearing space from ingress by dust and coolant<br>• 4-Bearing System: a double row angular contact bearing, a radial ball bearing, and a rear needle roller bearing combine to provide excellent rigidity and high precision point concentricity<br>• Heat treated drop-forged body (HRC 50±2) for extra strength, rigidity, and long life<br>• Shaft borehole for easy dismounting<br>• 60º point angle |
|---|---|
| Short Description | • Brand: GS Tooling<br> |
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Point Diameter (mm) | 12.5 |
