Sowa Tool
320125

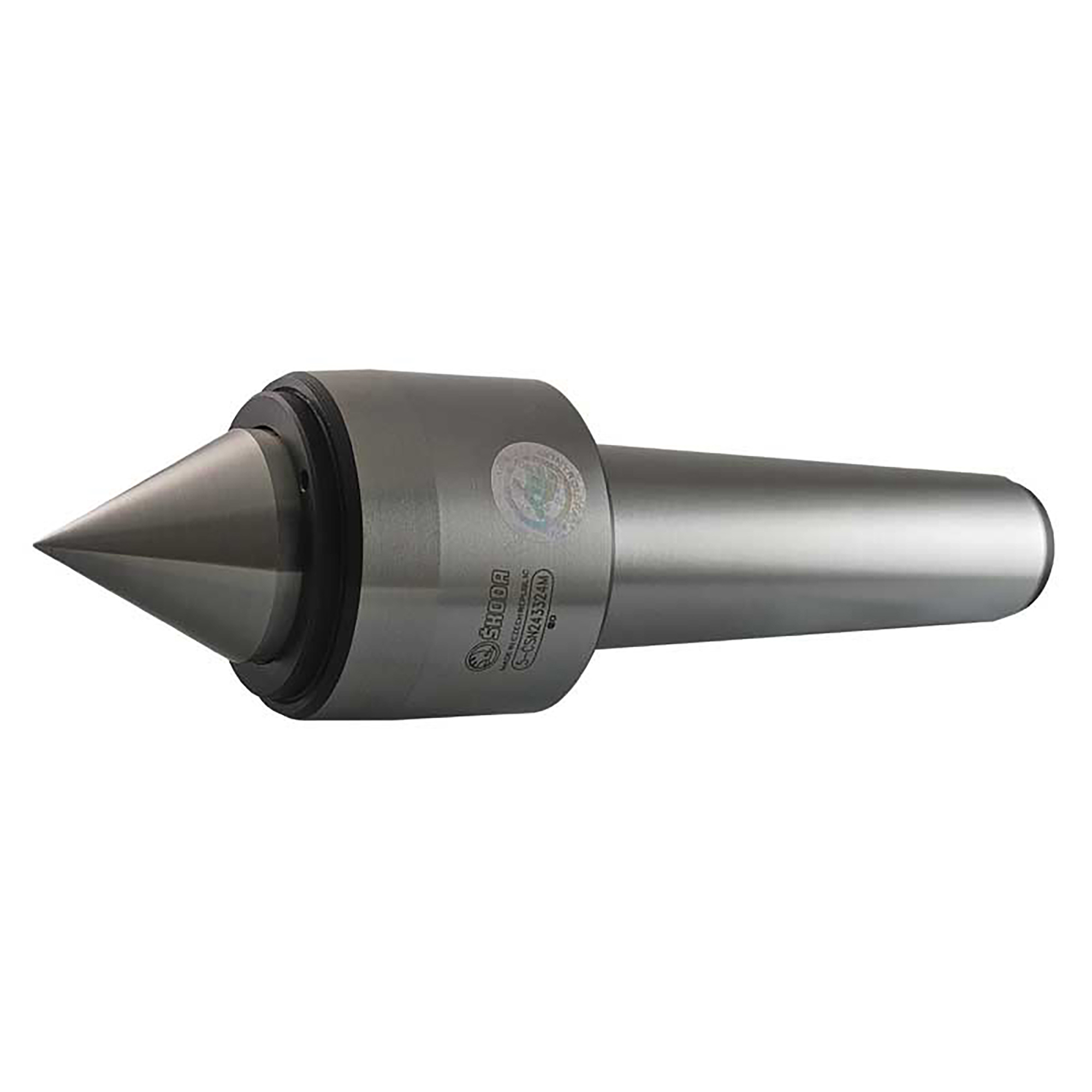

MT5 Heavy Duty Live Centre
Specifications
| Long Description | • Shank Type: Taper Shank<br>• Taper Size: MT5<br>• Maximum Workpiece Weight (Lb.): 3000<br>• Point Diameter (Inch): 1-3/4"<br>• The rotating spindle is extended right through the tapered shank<br>• Two specially designed adjustable needle-roller bearings carry all radial loads<br>• A heavy duty ball thrust bearing takes all axial thrust<br>• Complete protection of bearings form the ingress of coolant, dirt or swarf is provided by the built-in oil-seal, which also prevents loss of lubricant |
|---|---|
| Short Description | • Brand: STM<br>• Included Angle : 60º<br>• Overall Length (Inch) : 9-1/2" |
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Point Diameter (in) | 1-3/4" |
