Sowa Tool
326520

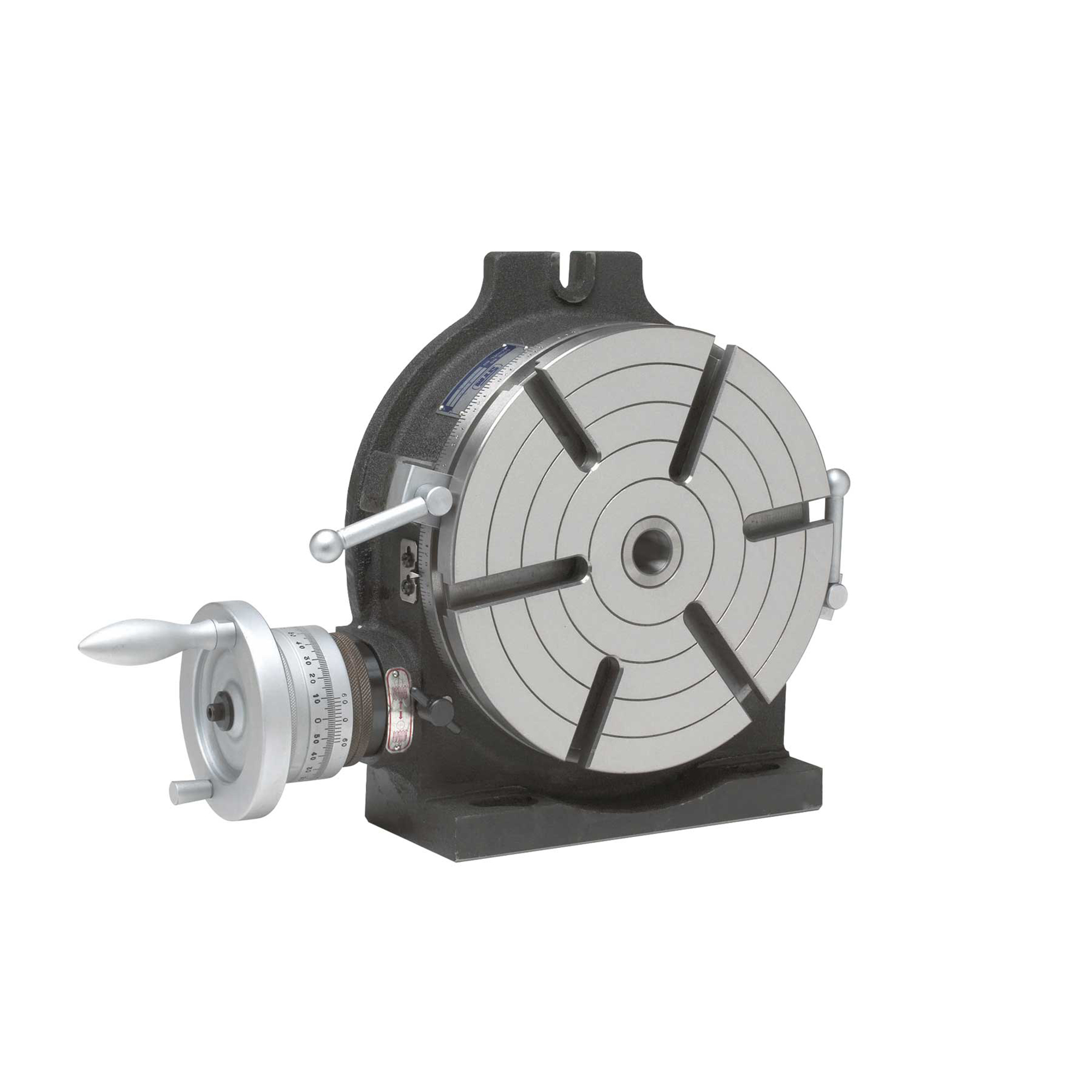

HV-14 14" Horizontal/Vertical Rotary And Dividing Table
Specifications
| Long Description | • Setting Position: Horizontal; Vertical<br>• Tilting: No<br>• Cross-Slide: No<br>• Table Diameter (Inch): 14"<br>• T-Slot Width (Decimal Inch): 0.63<br>• This HV Type Rotary Table is so designed as to permit machining operations at a higher dimension than that of RT Type Rotary tables • The base can be used in a vertical position to enable the carrying out of centre work • Worm gear 90:1 |
|---|---|
| Short Description | • Brand: STM<br>• Centerline Height (Decimal Inch) : 230<br>• Overall Height (Decimal Inch) : 5.51"<br>• Model Number : HV-14<br>• Center Taper : MT4 |
