Sowa Tool
327320

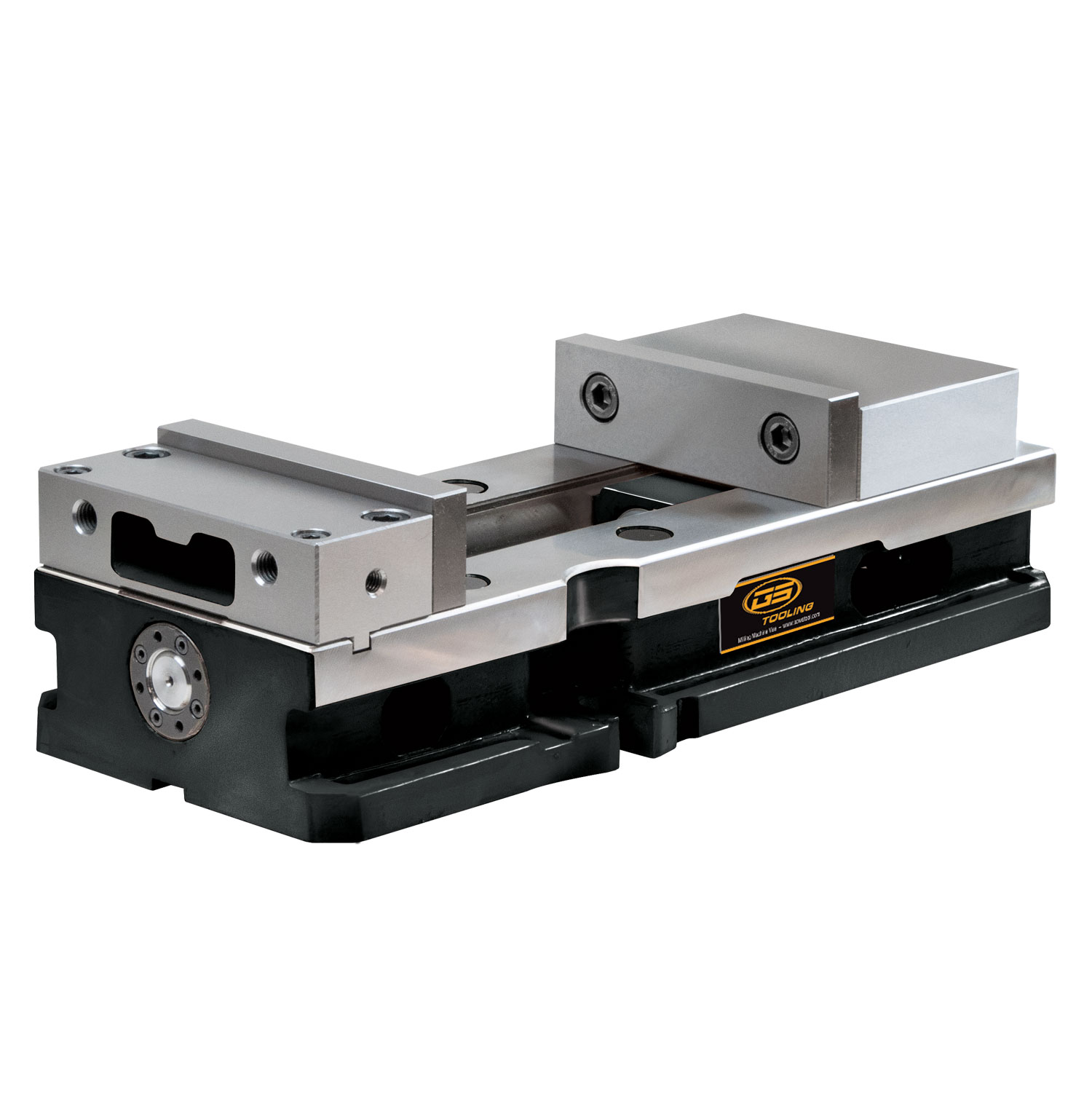

6" x 9.13" Precision Milling Machine Vise
Specifications
| Long Description | • Jaw Width (Inch): 6"<br>• Orientation Type: Horizontal<br>• Number of Stations: 1<br>• Base Motion Type: Stationary<br>• Jaw Opening Capacity (Decimal Inch): 9.13"<br>• Jaw opening increased from 8.8" to 9.13"<br>• Same bed height as our 327290M: 2.875" ±0.0005"<br>• Narrower body style to allow more vises on a machine table<br>• The bearing pack has been relocated to help reduce oil / water / chip leakage into the vise body, thus improving the life time<br>• The thrust bearings have been replaced with ball bearings to make the pack stronger and more stable<br>• Same distance from the keyway to stationary as the 327290M<br>• 68 lbs. for the ADX-160G vs. 327290M weight 80 lbs.<br>• Spindle does not protrude past the end of the body<br>• Spherical segment creates all-directional alignment and reduces jaw lift for improved performance<br>• New brush seal design<br>• Perpendicularity (running face and jaw plate): 0.0004"<br>• Parallelism (running face to bottom of bed): 0.0006"<br>• Material: FCD-60 (80,000psi)<br>• New stationary jaw: 4 bolt stationary design reduces lift<br>• Pull-Type design: Reduces stress on body during clamping<br>• Chip evacuation: Straight through the body on sides and ends. Locations strategically chosen to not reduce body strength |
|---|---|
| Short Description | • Brand: GS Tooling<br> |
| Jaw Width (Inch) | 6" |
