Sowa Tool
521242

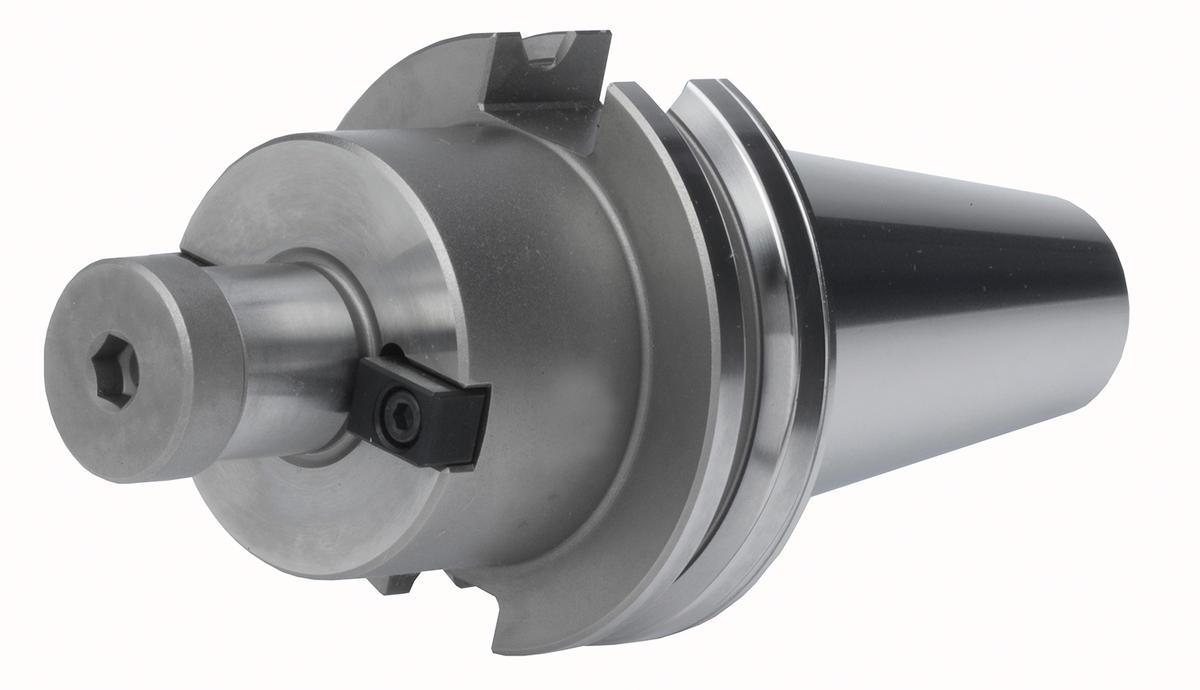

CAT50 2" x 4" Dual Contact Shell Mill Holder
Specifications
| Long Description | • Shank Type: Taper Shank<br>• Taper Size: CAT50<br>• Pilot Diameter (Inch): 2"<br>• Projection Flange to Nose End (Decimal Inch): 4<br>• Nose Diameter (Decimal Inch): 4.38<br>FOR DUAL CONTACT SPINDLES • Improves rigidity and reduces vibration allowing for increased feed rates and increased tool life • DIN coolant option - standard • All Ground Body |
|---|---|
| Short Description | • Brand: GS Tooling<br>• Arbor Thread : 1"-14<br>• Key Size : 3/4"<br>• Pilot Length (Decimal Inch) : 0.93 |
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Pilot Diameter (Inch) | 2" |
