Sowa Tool
532139

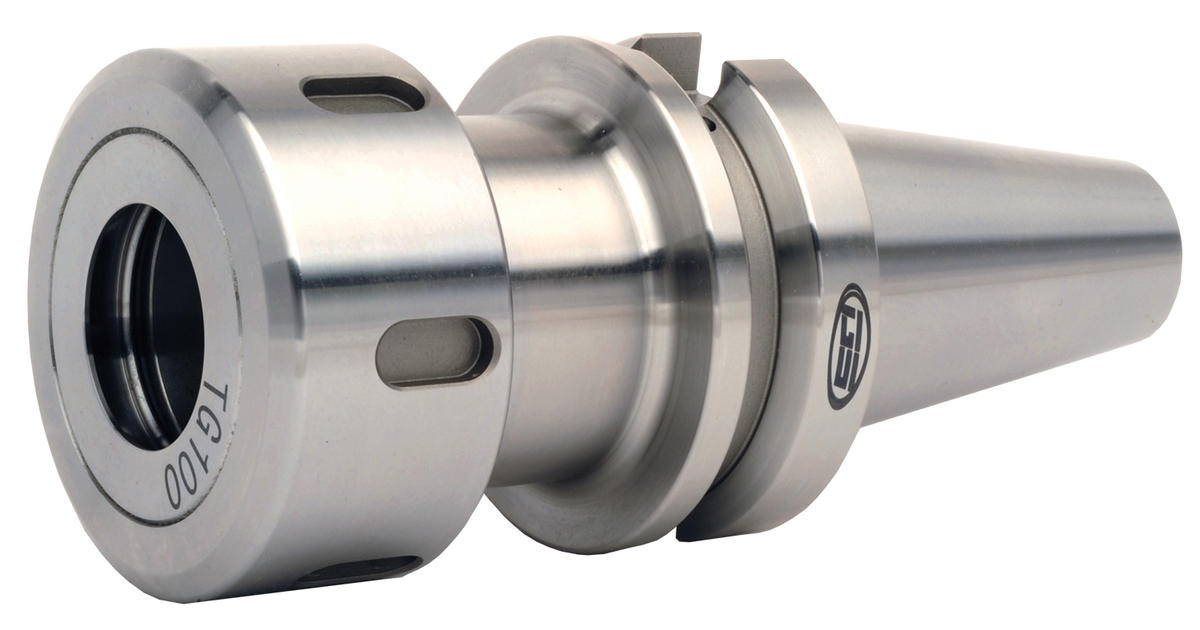

BT50 4.00" TG100 Collet Chuck
Specifications
| Taper Size | BT50 |
|---|---|
| Long Description | • Collet System : Single Angle<br>• Collet Series: TG100<br>• Shank Type: Taper Shank<br>• Taper Size: BT50<br>• Projection (Decimal Inch): 4<br>• DIN coolant through the flange<br>• Shank traverse ground to obtain optimum accuracy<br>• Meets or exceeds ANSI specifications<br>• 0.0002" or better ensures the best possible cutting tool life<br>• Wrench not included<br>• Factory Balanced to save spindle life, tool life and increased productivity<br>• Threaded through holes for a back-up screw (tool stop) or coolant through when removed<br>• BT30/40 Premium balanced to 20,000 rpm<br>• BT50 Premium balanced to 15,000 rpm |
| Short Description | • Brand: GS Tooling<br>• Minimum Collet Capacity (Inch) : 3/64"<br>• Maximum Collet Capacity (Inch) : 1"<br>• Balanced to (RPM) : 30000<br>• Collet Nut Diameter (Decimal Inch) : 2.5<br>• Seat Depth (Decimal Inch) : 2.13<br>• Tightening Torque (Nm) : 81.3 |
| Shank Type | Taper Shank |
| Collet Series | TG100 |
