Sowa Tool
532194

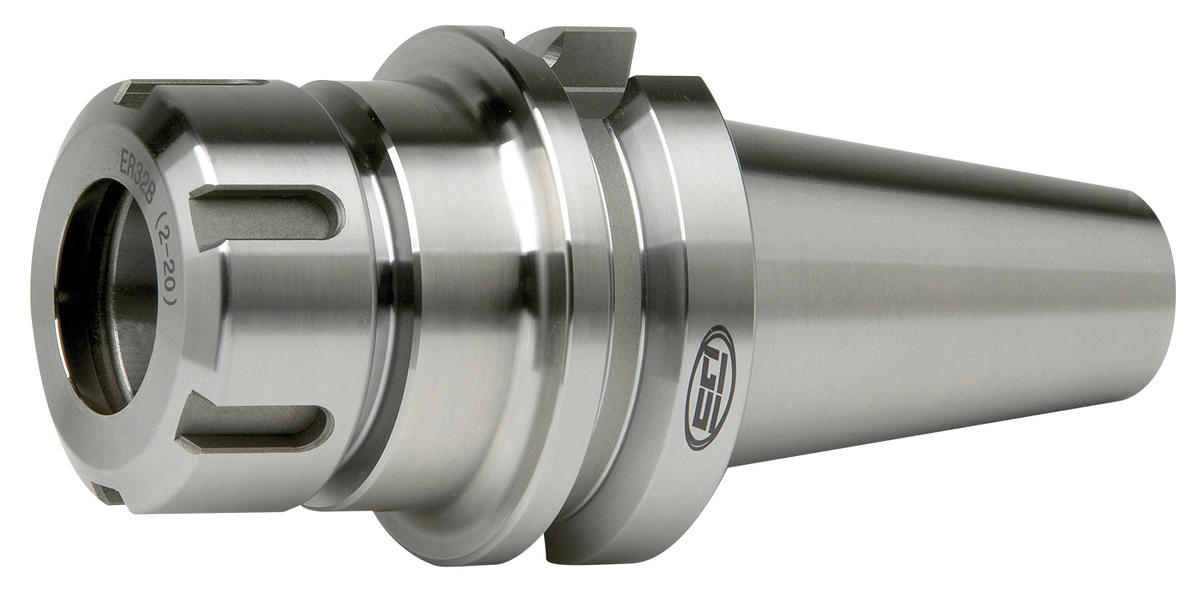

BT40 6.00" ER25 Collet Chuck
Specifications
| Taper Size | BT40 |
|---|---|
| Long Description | • Collet System : ER<br>• Collet Series: ER25<br>• Shank Type: Taper Shank<br>• Taper Size: BT40<br>• Projection (Decimal Inch): 6<br>• DIN Coolant option - standard<br>• All Ground Body<br>• Factory Balanced to save spindle life, tool life and increased productivity<br>• Threaded through holes for a back-up screw (tool stop) or coolant through when removed<br>• Wrench not included<br>• BT30/BT40 Premium balanced to 30,000 rpm<br>• BT50 Premium balanced to 25,000 rpm |
| Short Description | • Brand: GS Tooling<br>• Minimum Collet Capacity (Decimal Inch) : 0.039<br>• Maximum Collet Capacity (Decimal Inch) : 0.629<br>• Balanced to (RPM) : 30000<br>• Collet Nut Diameter (Decimal Inch) : 1.65<br>• Seat Depth (Decimal Inch) : 1.18<br>• Tightening Torque (Nm) : 128.8 |
| Shank Type | Taper Shank |
| Collet Series | ER25 |
