Sowa Tool
534352

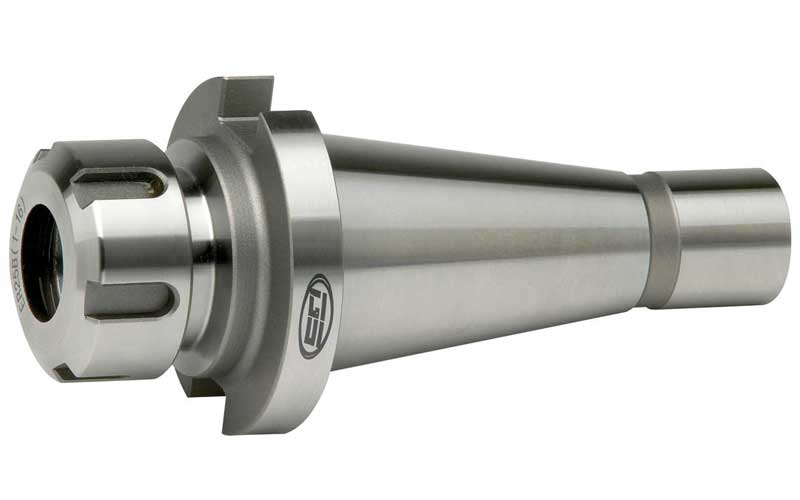

NMTB40 1.77" ER16 Collet Chuck
Specifications
| Taper Size | NMTB40 |
|---|---|
| Long Description | • Collet System : ER<br>• Collet Series: ER16<br>• Shank Type: Taper Shank<br>• Taper Size: NMTB40<br>• Projection (Decimal Inch): 1.77<br>• Wrench not included |
| Short Description | • Brand: GS Tooling<br>• Minimum Collet Capacity (Decimal Inch) : 0.019<br>• Maximum Collet Capacity (Decimal Inch) : 0.406<br>• Collet Nut Diameter (Decimal Inch) : 1.26<br>• Seat Depth (Decimal Inch) : 0.87<br>• : <br>• Tightening Torque (Nm) : 56.9 |
| Shank Type | Taper Shank |
| Collet Series | ER16 |
