Sowa Tool
541942

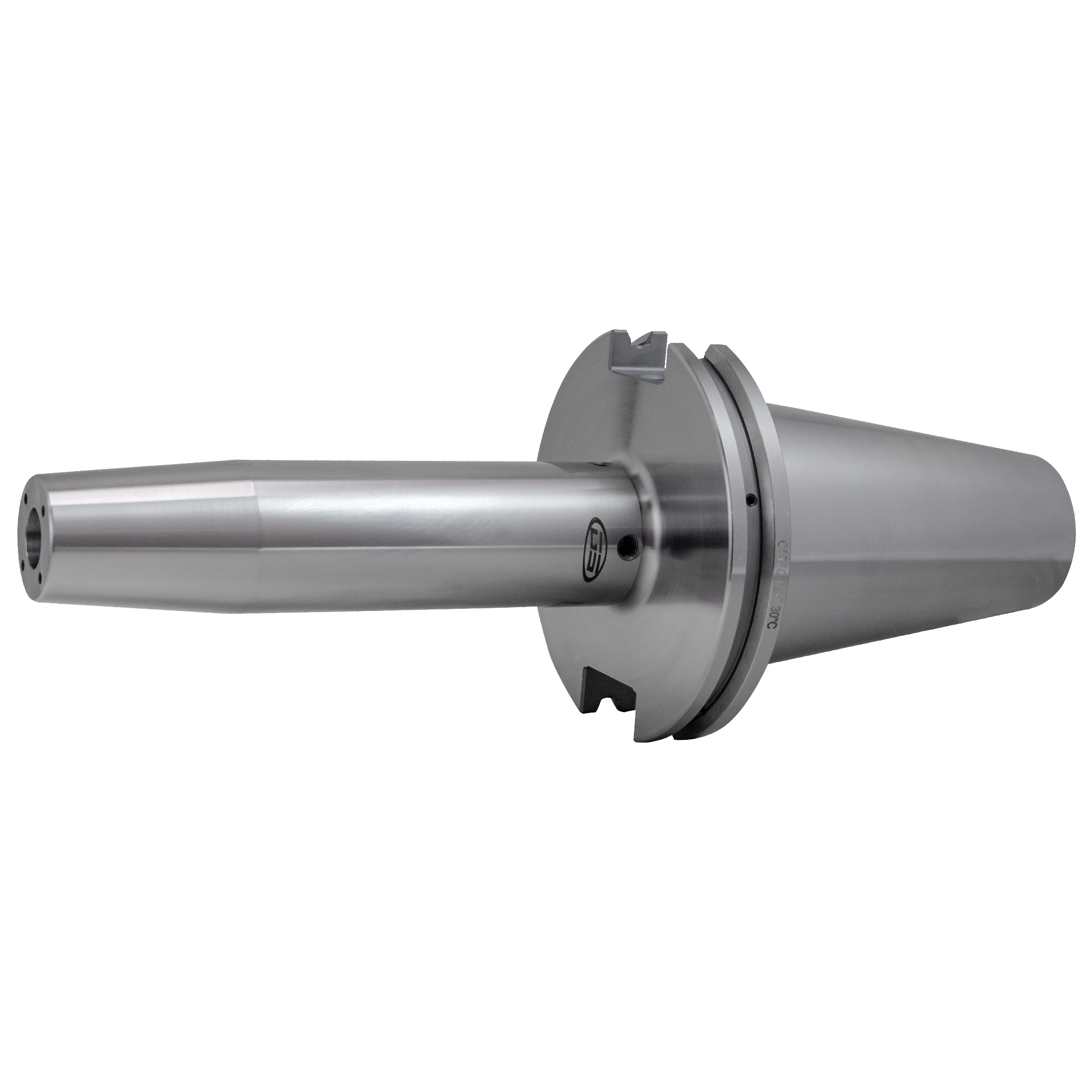

CAT50 3/8" x 6.30" Shrink Fit Holder With Coolant Ports
Specifications
| Taper Size | CAT50 |
|---|---|
| Long Description | • Shank Type: Taper Shank<br>• Taper Size: CAT50<br>• Hole Diameter (Inch): 3/8"<br>• Projection (Decimal Inch): 6.30"<br>• Nose Diameter (Decimal Inch): 0.94<br>• Through Coolant: Yes<br>• Unsurpassed Accuracy: Concentricity of ≤0.0001" (3µm) with tool shrunk in holder. • Coolant Ports: Each holder has 4 coolant ports in the nose to ensure coolant gets right to the tool. • Max Gripping Torque: Tool is gripped 360º along the entire length of bore producing very high gripping torque, preventing chatter. • Increased Production: Decrease down time - the total time elapsed to remove one cutting tool and insert another is less than 10 seconds. • Balanced: GS follows the strictest balance standards. Our holders are pre-balanced G2.5 up to 30,000rpm • Extended Holder Life: With double tempered tool steel construction, reduced centrifugal forces, minimized bore contamination, and minimized chatter, a GS Shrink Fit Toolholder should far outlast a standard end mill holder. • Chip load distributed evenly along cutting edge of tool which results in longer tool life • Short projections are possible because no mechanical clamping devices are used. This results in greater rigidity and resistance to bending. • Since Shrink Fit toolholders have no moving parts they offer the greatest repeatability of any tool holding system on the market |
| Short Description | • Brand: GS Tooling<br> |
| Shank Type | Taper Shank |
| Through Coolant | Yes |
| Hole Diameter (Inch) | 3/8" |
