Sowa Tool
7640171

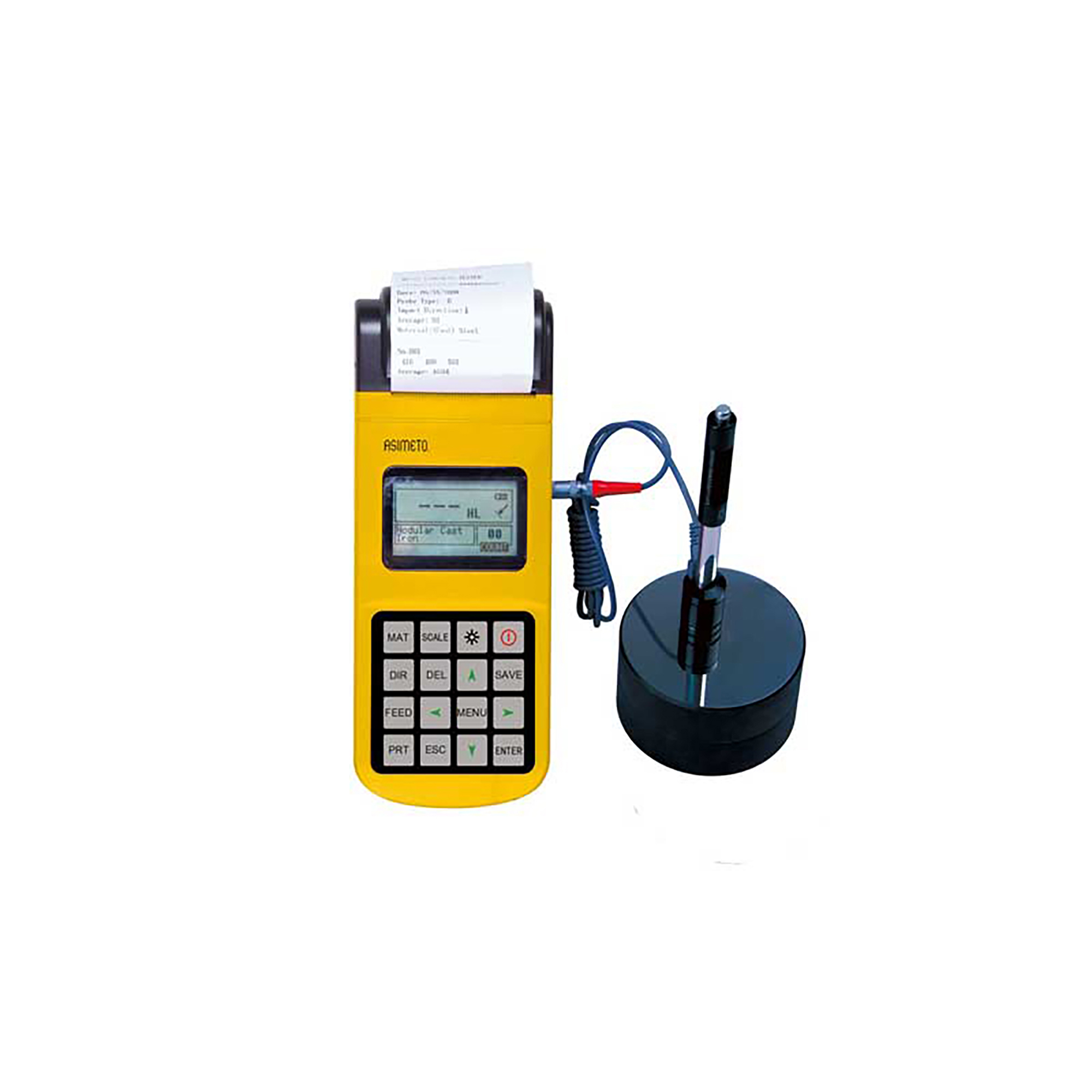

Asimeto Impact Hardness Tester
Specifications
| Long Description | • Scale Type: Rockwell, VIckers, Brinell, Shore, Leeb<br>• Minimum Hardness: 19 HB; 17 HRC; 170 HLD<br>• Maximum Hardness: 651 HB; 68.5 HRC; 960 HLD<br>• Display Type: LCD<br>• Large screen (128x64 dot matrix LCD), allows for clear display of all functions and parameters <br>• Hardness test can be taken at any angle including inverted. <br>• A wide measuring range supports the hardness of all metallic materials. Hardness results are directly displayed in HRB, HHRC, HV, HB, HS, HL hardness scales. <br>• Diameter of carbide ball: 3mm. <br>• Large capacity memory storage of 500 sub groups. Stored information including single measured value, mean value, test data, impact direction, impact times, material and hardness scale are available. <br>• Upper and lower limit can be preset. An audio alarm will automatically sound when the reading is outside of the preset limits. <br>• Battery voltage information is displayed including the charge status. <br>• Calibration function is available. <br>• USB1.1 port allows for information to be uploaded directly to a PC. <br>• High speed thermal printer allows for the readings to be immediately printed. <br>• 6V Ni-MH rechargeable battery are supplied. The batteries can be charged with the integrated charger. Up to 150 hours of continuous operation battery life between charges. (eL off and no printing) <br>• Automatic power off after five minutes. <br>• Range: (170-860)HLD, (17-68.5)HRC, (19-651)HB <br>• Accuracy: HLD: ±5, HRC: ±1, HB: ±4 <br><p>With <br>• Impact device <br>• Hardness test block <br>• Small support ring <br>• Cleaning brush <br>• Battery charger <br>• Paper for printing <br>• Manual <br>• DataPro software <br>• Communication cable |
|---|---|
| Short Description | • Brand: Asimeto |
| Display Type | LCD |
