Sumitomo
10T5AAR

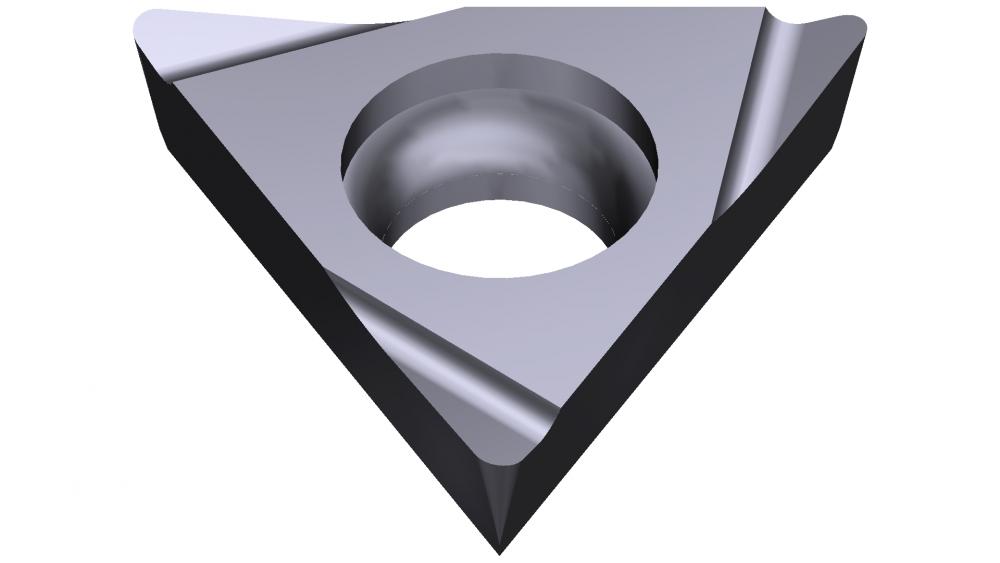

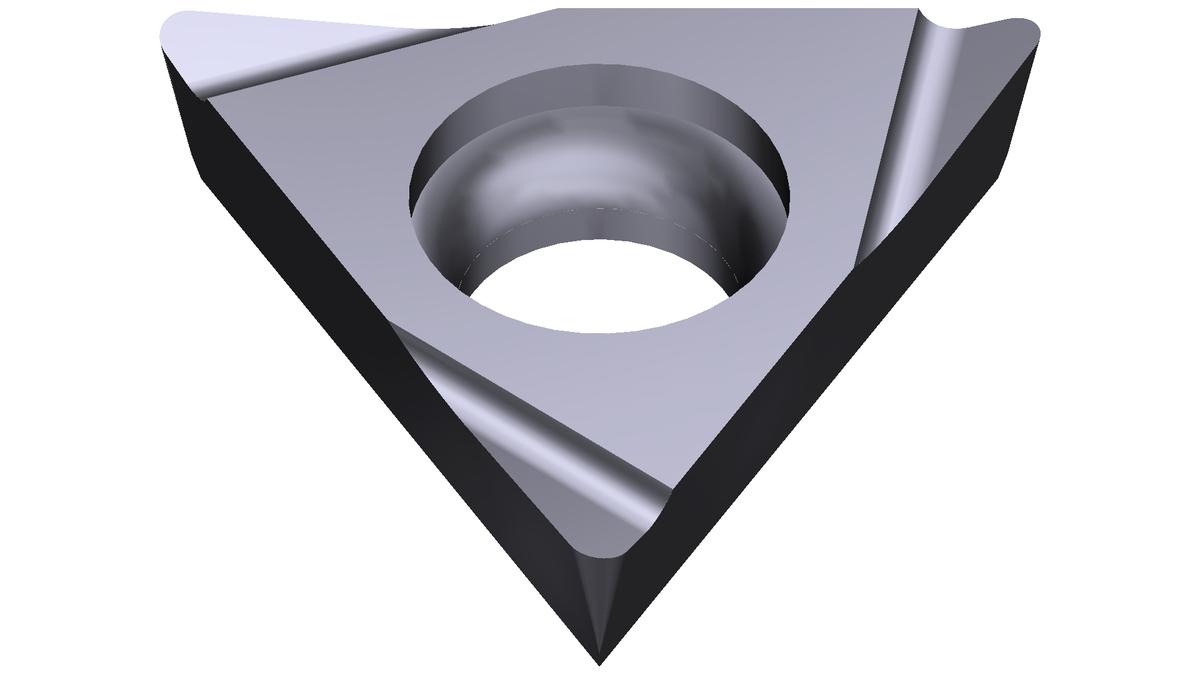

TBGT521LFY-AC5015S
Specifications
| Short Description | TBGT521 LFY Grade AC5015S Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.2717 |
| Inscribed Circle Diameter | 0.1563 |
| Relief Angle | 5 |
| Tolerance Class | G |
| Series | AC5000S |
| Coating Process Type | PVD |
| Insert Holding Method | Screw-On |
| Coating | Absotech |
| Hole Diameter | 2.2 |
| Corner Angle | 60 |
| Primary Workpiece Material | Heat Resistant Alloy |
| Insert Style | TBGT |
| Insert Size | 521 |
| Insert Thickness | 0.0626 |
| Secondary Workpiece Material | Stainless Steel |
