Sumitomo
10T5ARQ

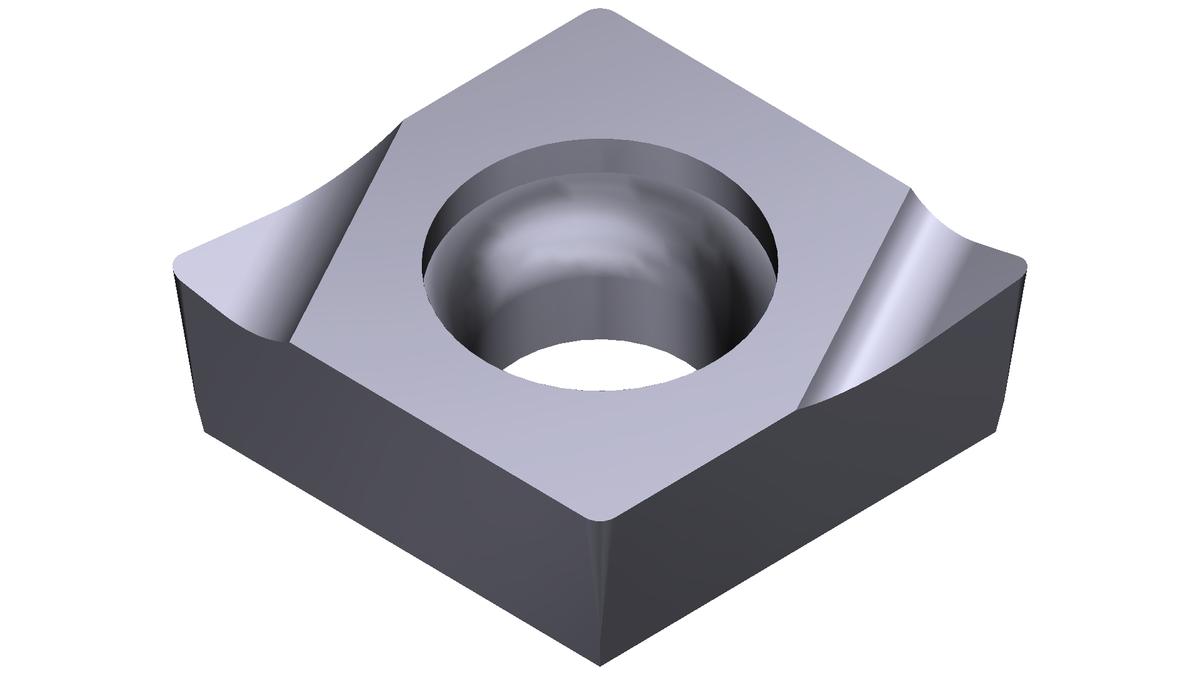

CCGT03X101LFY-AC5015S
Specifications
| Short Description | CCGT03 LFY Grade AC5015S Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.1398 |
| Inscribed Circle Diameter | 0.1378 |
| Relief Angle | 7 |
| Tolerance Class | G |
| Series | AC5000S |
| Coating Process Type | PVD |
| Insert Holding Method | Screw-On |
| Coating | Absotech |
| Hole Diameter | 1.9 |
| Corner Angle | 80 |
| Primary Workpiece Material | Heat Resistant Alloy |
| Insert Style | CCGT |
| Insert Size | 03X101 |
| Insert Thickness | 0.0551 |
| Secondary Workpiece Material | Stainless Steel |
