Sumitomo
10T6447

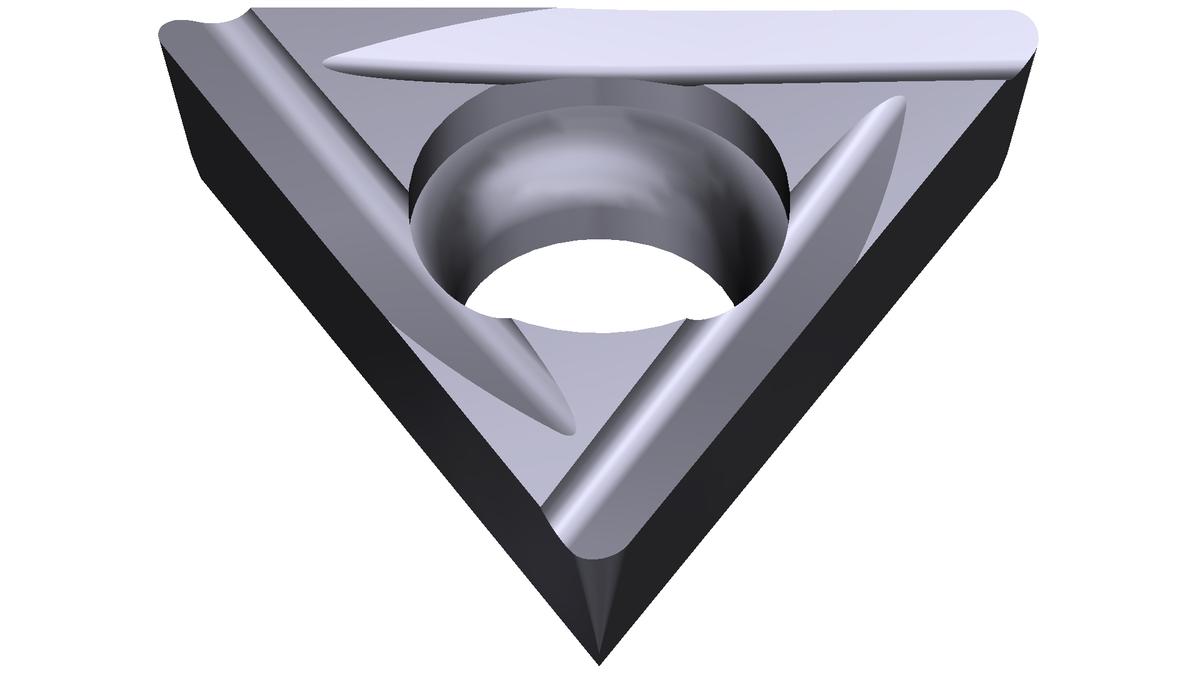

TCGT1.81.50.5RFX-AC5025S
Specifications
| Short Description | TCGT1.81.50.5 RFX Grade AC5025S Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.378 |
| Inscribed Circle Diameter | 0.2189 |
| Relief Angle | 7 |
| Tolerance Class | G |
| Series | AC5000S |
| Coating Process Type | PVD |
| Insert Holding Method | Screw-On |
| Coating | Absotech |
| Hole Diameter | 2.5 |
| Corner Angle | 60 |
| Primary Workpiece Material | Heat Resistant Alloy |
| Insert Style | TCGT |
| Insert Size | 1.81.50 |
| Insert Thickness | 0.0937 |
| Secondary Workpiece Material | Stainless Steel |
