Sumitomo
10T6ALP
VBGT221LFY-AC5025S
Specifications

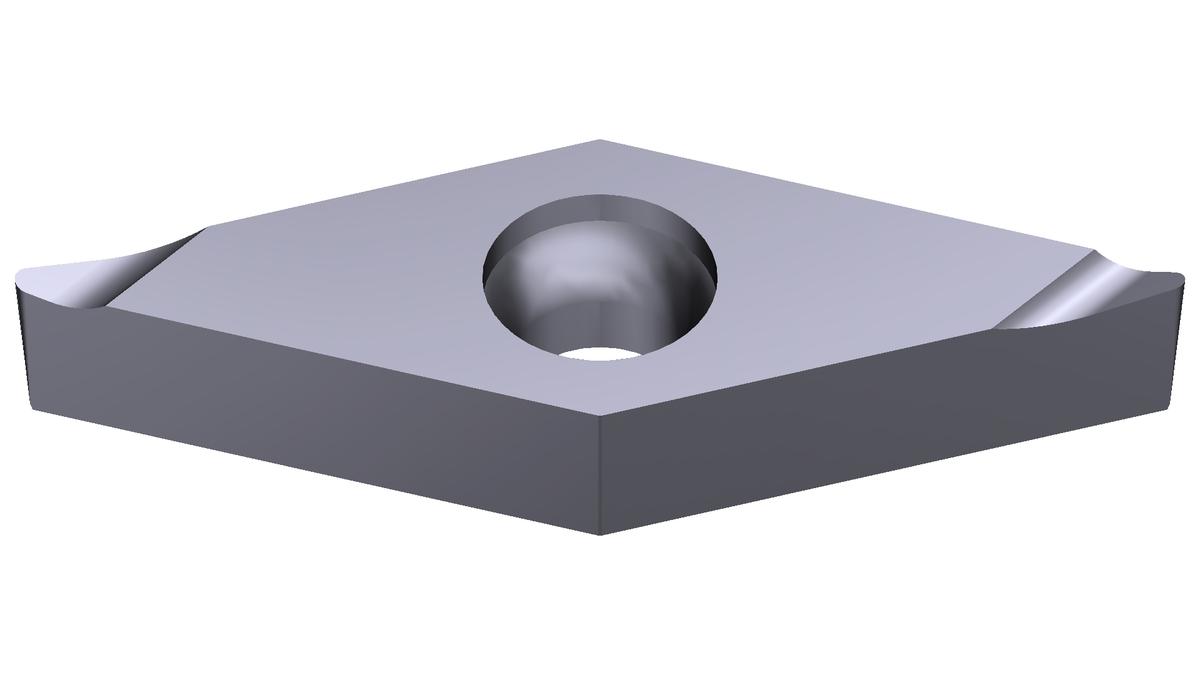

| Short Description | VBGT221 LFY Grade AC5025S Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.437 |
| Inscribed Circle Diameter | 0.25 |
| Relief Angle | 5 |
| Tolerance Class | G |
| Series | AC5000S |
| Coating Process Type | PVD |
| Insert Holding Method | Screw-On |
| Coating | Absotech |
| Hole Diameter | 2.8 |
| Corner Angle | 35 |
| Primary Workpiece Material | Heat Resistant Alloy |
| Insert Style | VBGT |
| Insert Size | 221 |
| Insert Thickness | 0.1252 |
| Secondary Workpiece Material | Stainless Steel |
