Sumitomo
10T6ARV

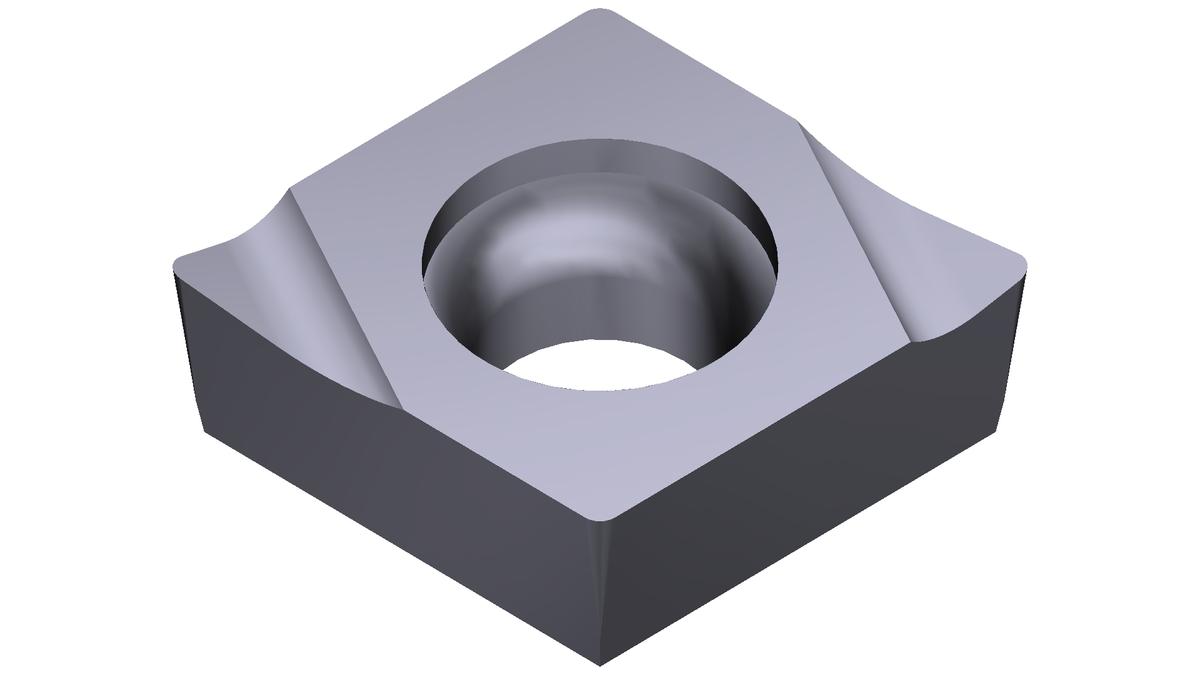

CCGT04X101RFY-AC5025S
Specifications
| Short Description | CCGT04 RFY Grade AC5025S Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.1957 |
| Inscribed Circle Diameter | 0.1693 |
| Relief Angle | 7 |
| Tolerance Class | G |
| Series | AC5000S |
| Coating Process Type | PVD |
| Insert Holding Method | Screw-On |
| Coating | Absotech |
| Hole Diameter | 2.3 |
| Corner Angle | 80 |
| Primary Workpiece Material | Heat Resistant Alloy |
| Insert Style | CCGT |
| Insert Size | 04X101 |
| Insert Thickness | 0.0709 |
| Secondary Workpiece Material | Stainless Steel |
