Sumitomo
191RCAA
CNMG431EGZ-AC420K
Specifications

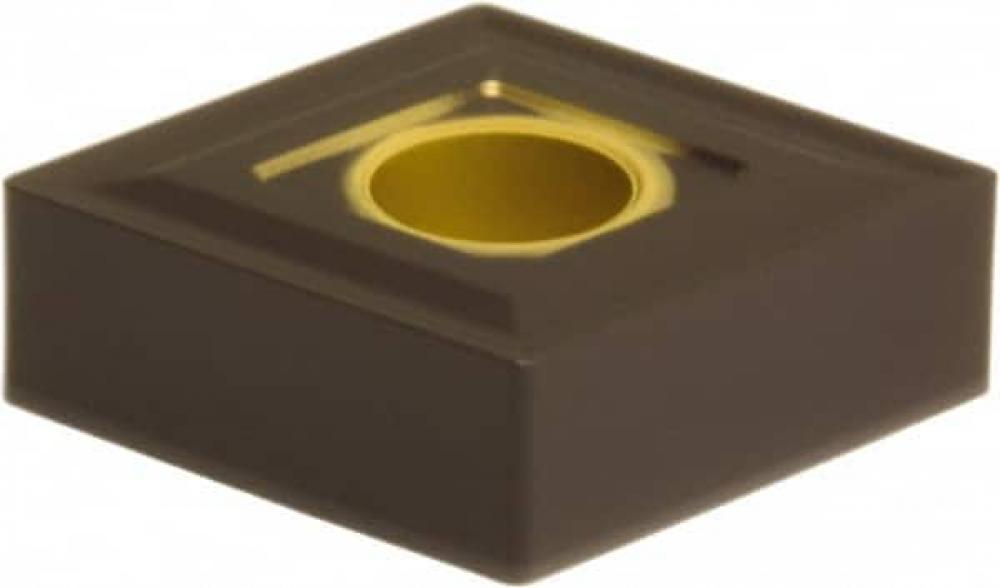

| Short Description | CNMG431EGZ Grade AC420K Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.5079 |
| Inscribed Circle Diameter | 0.5 |
| Relief Angle | 0 |
| Tolerance Class | M |
| Series | AC420K |
| Coating Process Type | CVD |
| Insert Holding Method | Pin & Clamp |
| Coating | Super FF Coat |
| Hole Diameter | 5.16 |
| Corner Angle | 80 |
| Primary Workpiece Material | Cast Iron |
| Insert Style | CNMG |
| Insert Size | 431 |
| Insert Thickness | 0.1874 |
