Sumitomo
196CBRV
WNMG433ELUW-AC6030M
Specifications

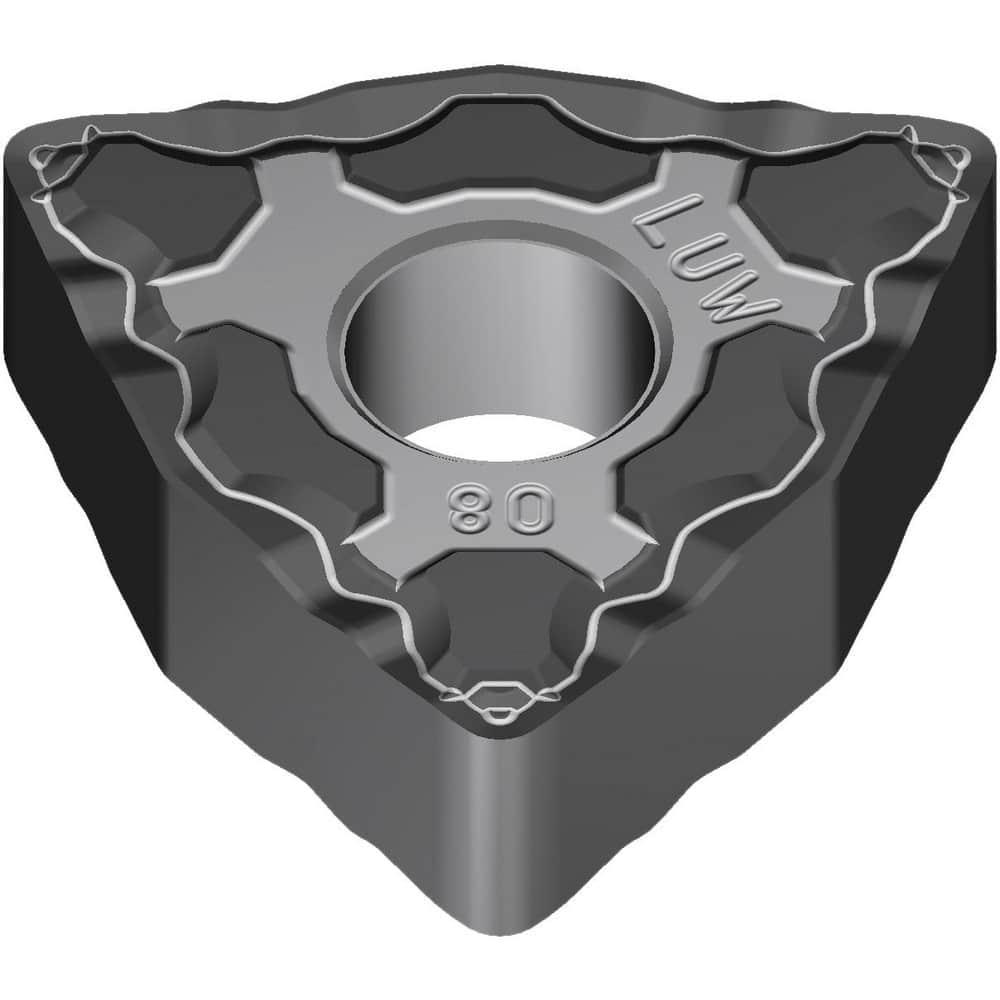

| Short Description | WNMG433ELUW Grade AC6030M Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.3425 |
| Inscribed Circle Diameter | 0.5 |
| Relief Angle | 0 |
| Tolerance Class | M |
| Series | AC6000M |
| Coating Process Type | CVD |
| Insert Holding Method | Pin & Clamp |
| Coating | Absotech |
| Hole Diameter | 5.16 |
| Corner Angle | 80 |
| Primary Workpiece Material | Stainless Steel |
| Insert Style | WNMG |
| Insert Size | 433 |
| Insert Thickness | 0.1874 |
