Sumitomo
196CBWJ
DNMG331ELU-AC6030M
Specifications

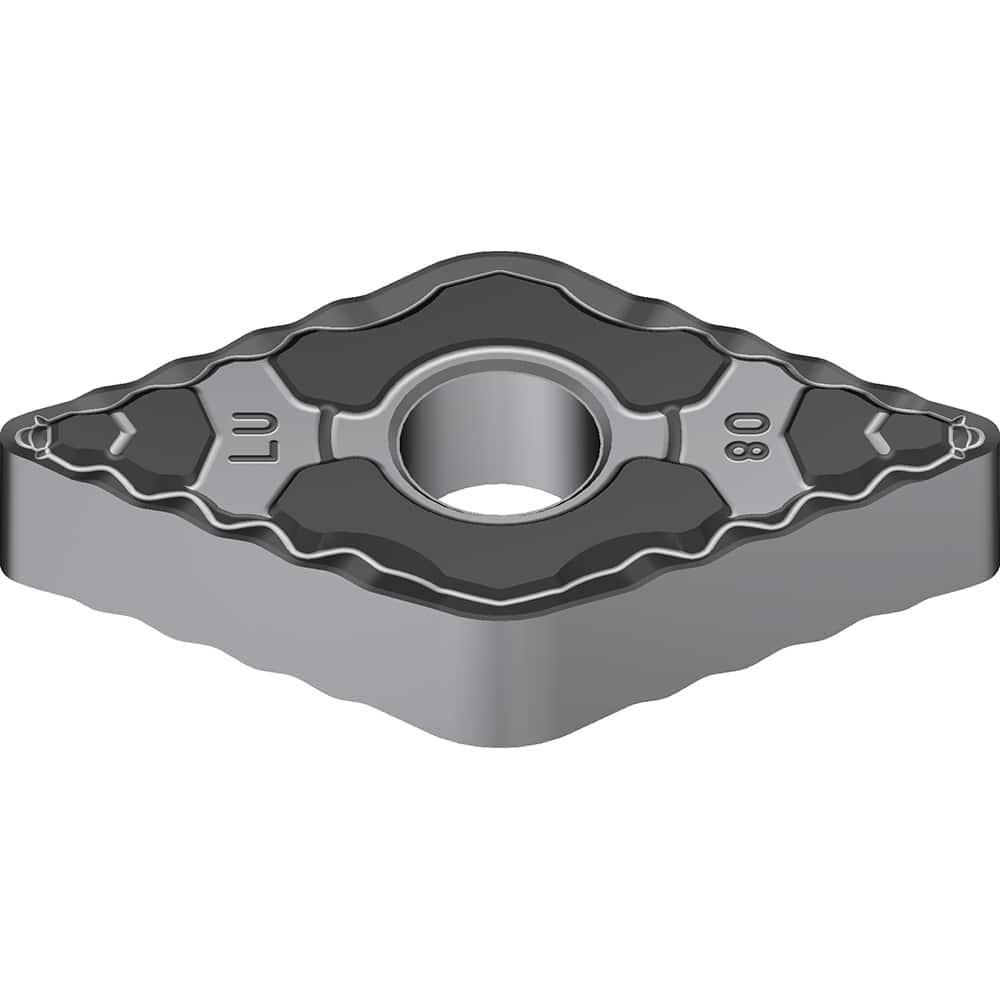

| Short Description | DNMG331ELU Grade AC6030M Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.4567 |
| Inscribed Circle Diameter | 0.375 |
| Relief Angle | 0 |
| Tolerance Class | M |
| Series | AC6000M |
| Coating Process Type | CVD |
| Insert Holding Method | Pin & Clamp |
| Coating | Absotech |
| Hole Diameter | 3.81 |
| Corner Angle | 55 |
| Primary Workpiece Material | Stainless Steel |
| Insert Style | DNMG |
| Insert Size | 331 |
| Insert Thickness | 0.1874 |
