Sumitomo
196CCPD
SPMT321ELB-AC6030M
Specifications

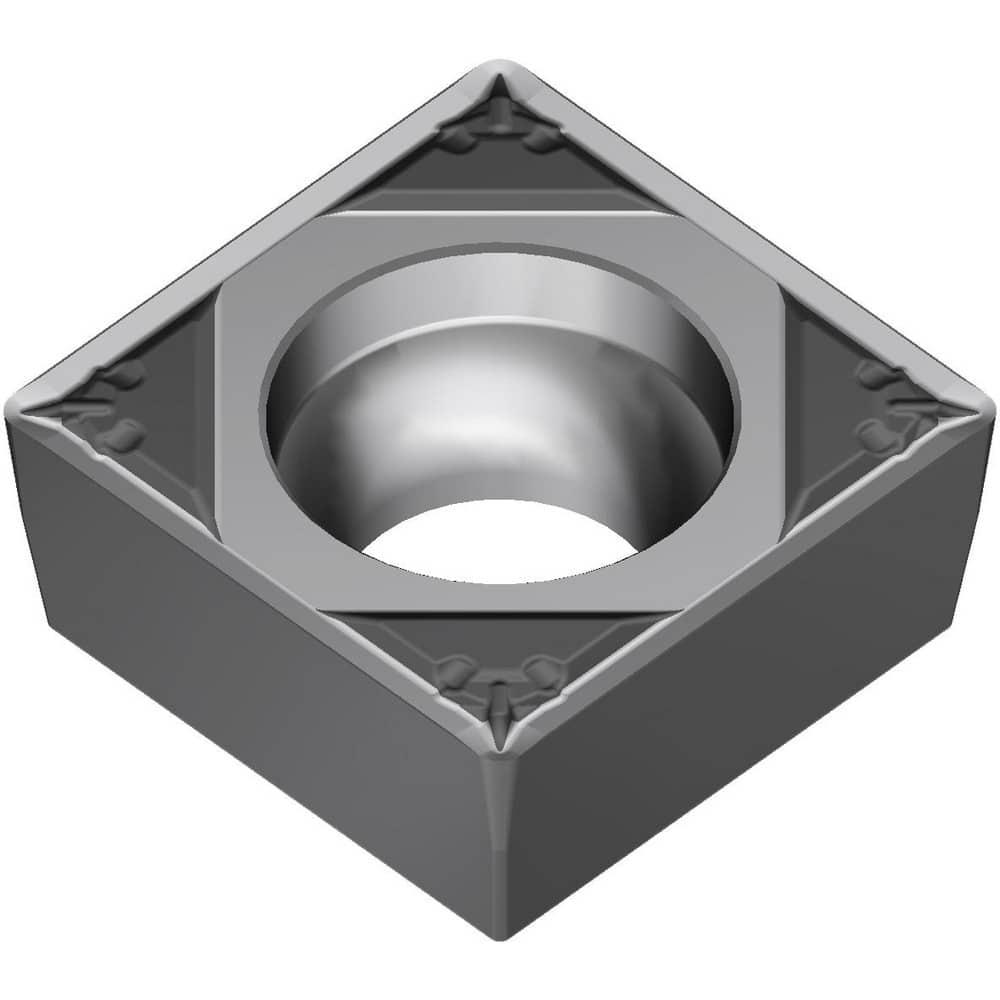

| Short Description | SPMT321ELB Grade AC6030M Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.375 |
| Inscribed Circle Diameter | 0.375 |
| Relief Angle | 11 |
| Tolerance Class | M |
| Series | AC6000M |
| Coating Process Type | CVD |
| Insert Holding Method | Screw-On |
| Coating | Absotech |
| Hole Diameter | 3.4 |
| Corner Angle | 90 |
| Primary Workpiece Material | Stainless Steel |
| Insert Style | SPMT |
| Insert Size | 321 |
| Insert Thickness | 0.1252 |
