Sumitomo
196DBRL
SNMG431EEX-AC6040M
Specifications

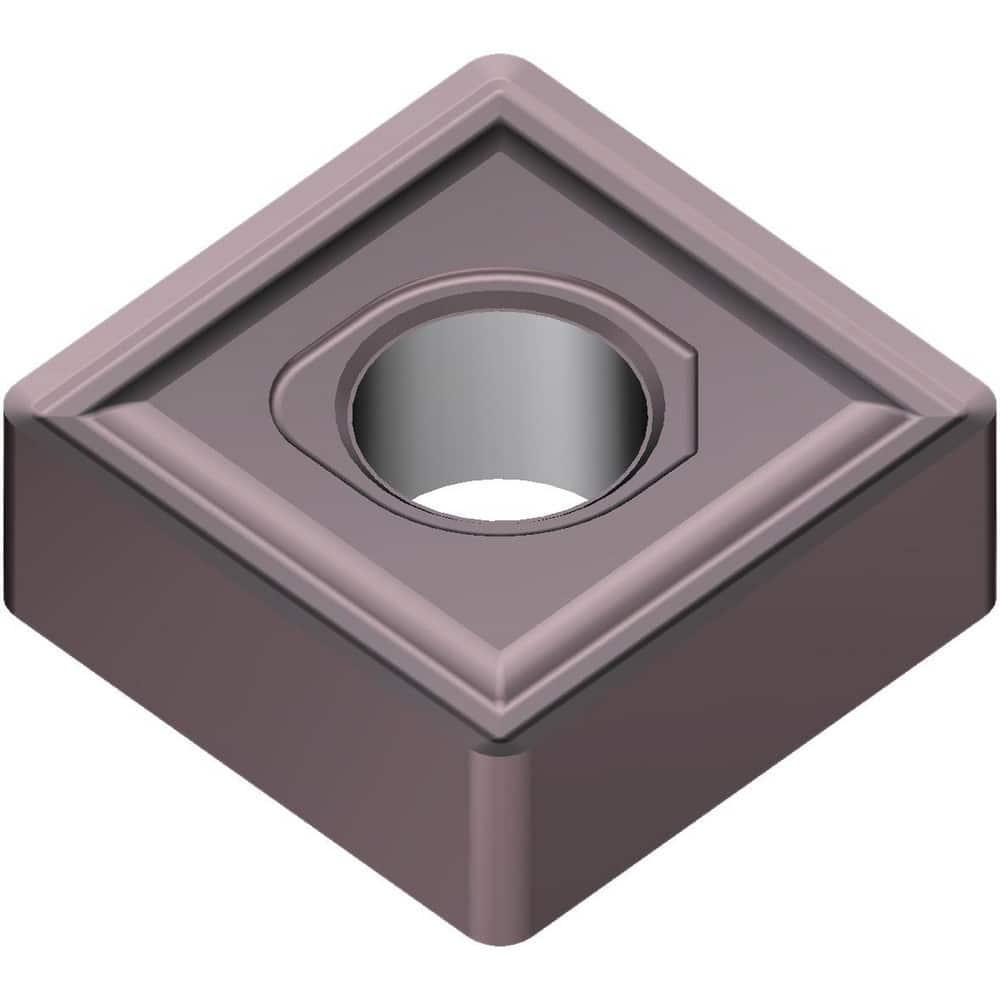

| Short Description | SNMG431EEX Grade AC6040M Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.5 |
| Inscribed Circle Diameter | 0.5 |
| Relief Angle | 0 |
| Tolerance Class | M |
| Series | AC6000M |
| Coating Process Type | PVD |
| Insert Holding Method | Pin & Clamp |
| Coating | Absotech |
| Hole Diameter | 5.16 |
| Corner Angle | 90 |
| Primary Workpiece Material | Stainless Steel |
| Insert Style | SNMG |
| Insert Size | 431 |
| Insert Thickness | 0.1874 |
