Sumitomo
196DCBQ
VCMT631ESU-AC6040M
Specifications

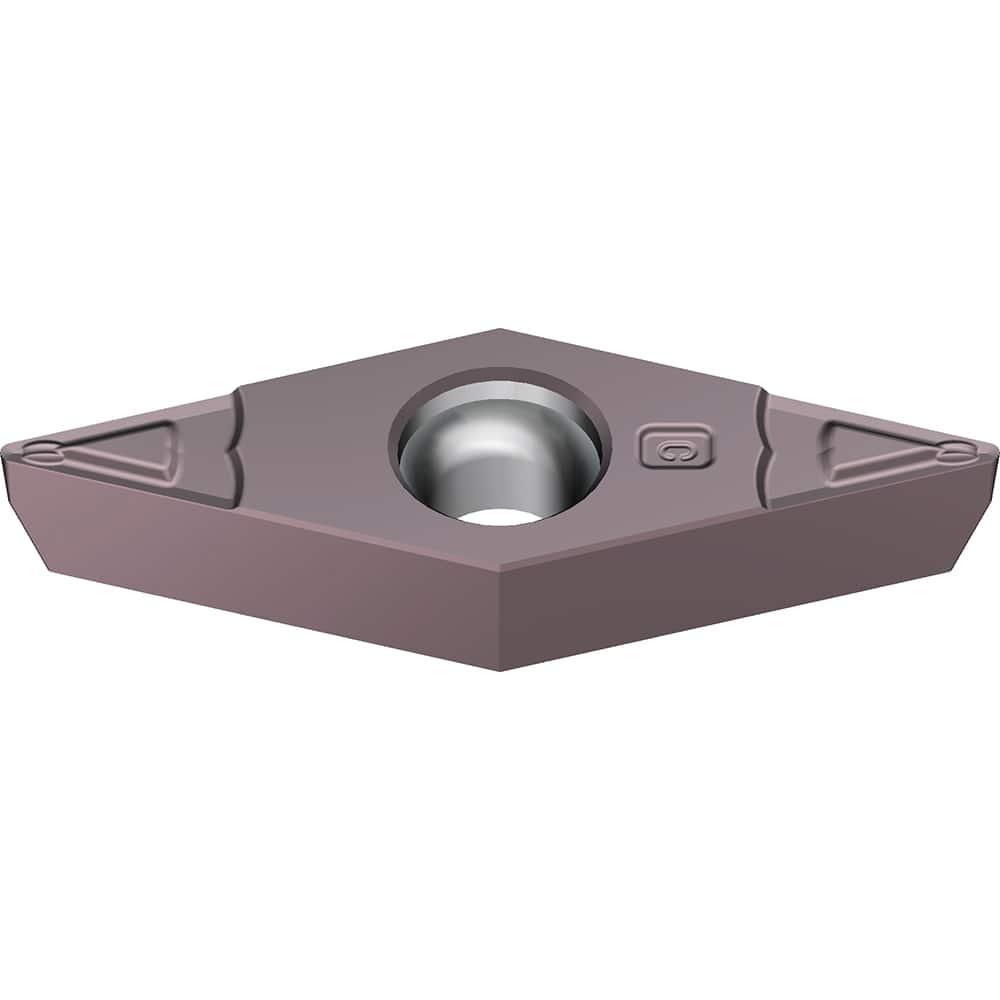

| Short Description | VCMT631ESU Grade AC6040M Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.3268 |
| Inscribed Circle Diameter | 0.1874 |
| Relief Angle | 7 |
| Tolerance Class | M |
| Series | AC6000M |
| Coating Process Type | PVD |
| Insert Holding Method | Screw-On |
| Coating | Absotech |
| Hole Diameter | 2.3 |
| Corner Angle | 35 |
| Primary Workpiece Material | Stainless Steel |
| Insert Style | VCMT |
| Insert Size | 631 |
| Insert Thickness | 0.0937 |
