Sumitomo
196DDDC
SCMT32.52EGU-AC6040M
Specifications

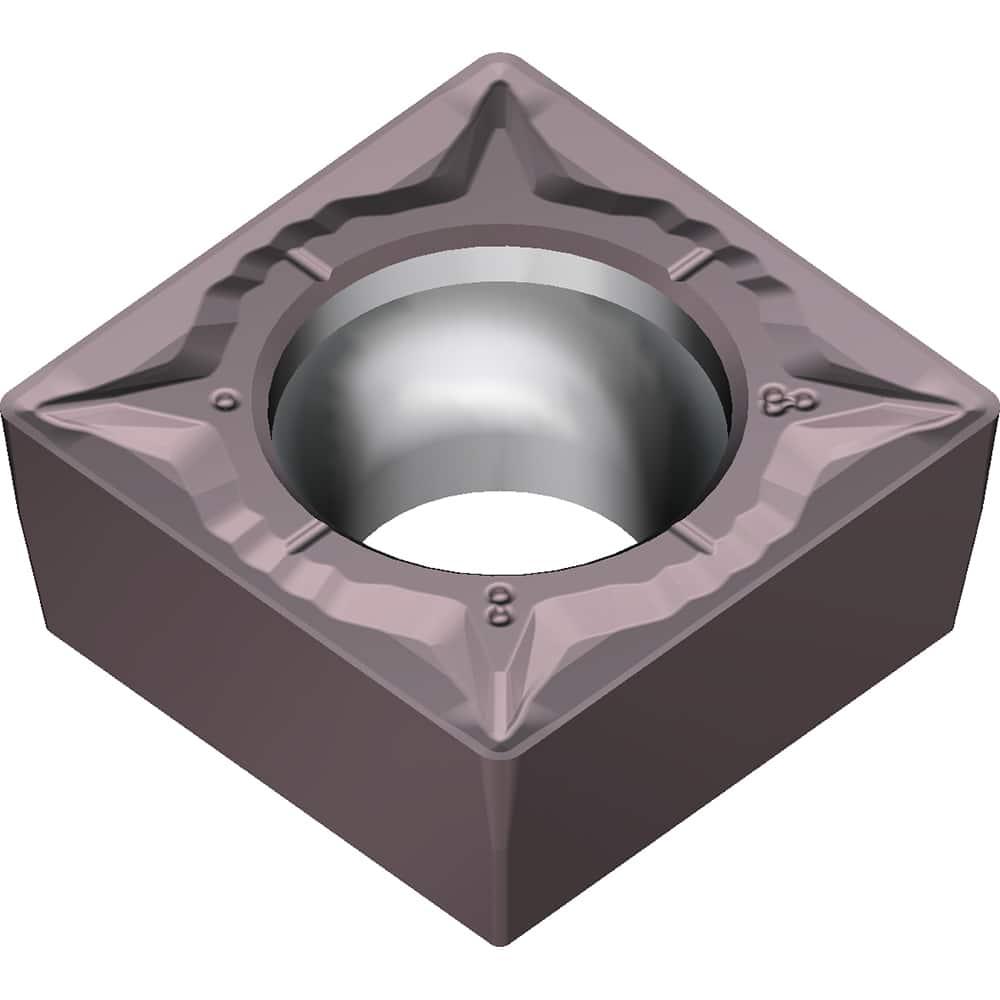

| Short Description | SCMT32.52EGU Grade AC6040M Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.375 |
| Inscribed Circle Diameter | 0.375 |
| Relief Angle | 7 |
| Tolerance Class | M |
| Series | AC6000M |
| Coating Process Type | PVD |
| Insert Holding Method | Screw-On |
| Coating | Absotech |
| Hole Diameter | 4.4 |
| Corner Angle | 90 |
| Primary Workpiece Material | Stainless Steel |
| Insert Style | SCMT |
| Insert Size | 32.52 |
| Insert Thickness | 0.1563 |
