Sumitomo
19R5114
CPMT321ESU-AC6020M
Specifications

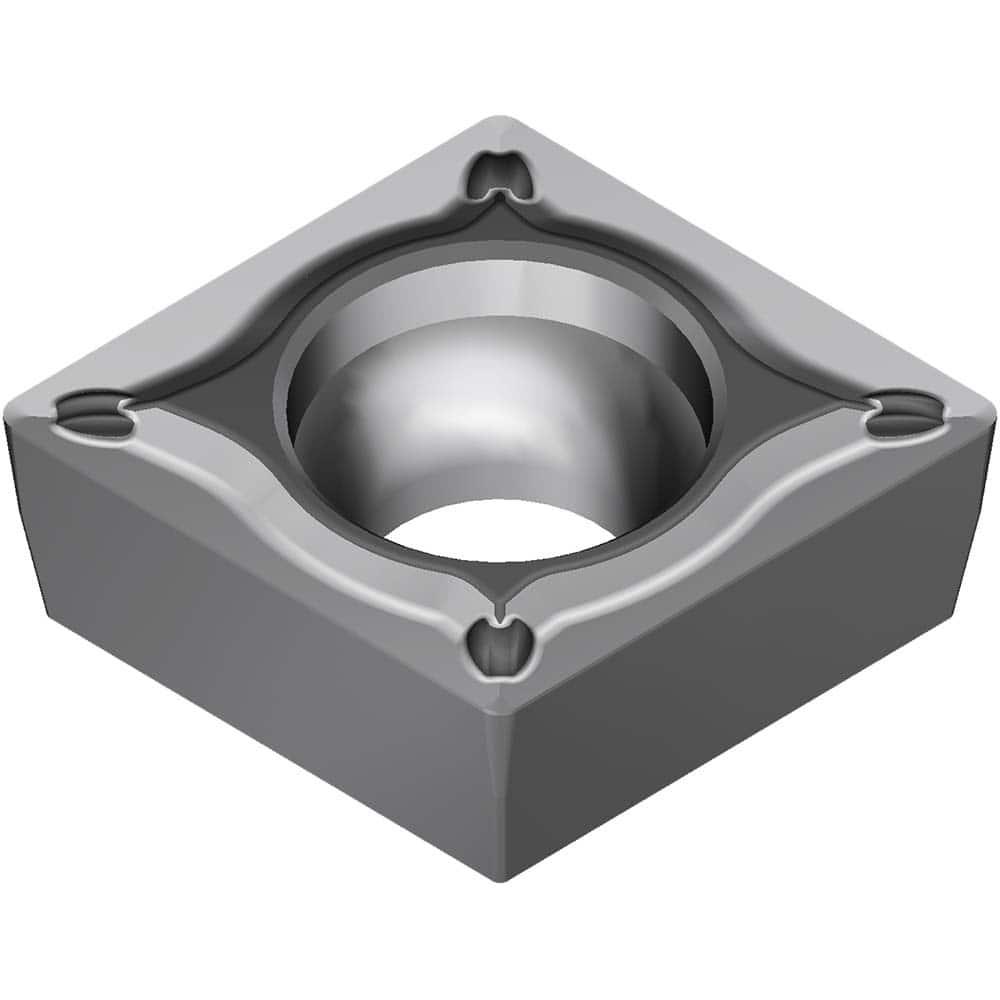

| Short Description | CPMT321ESU Grade AC6020M Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.3819 |
| Inscribed Circle Diameter | 0.375 |
| Relief Angle | 11 |
| Tolerance Class | M |
| Series | AC6000M |
| Coating Process Type | CVD |
| Insert Holding Method | Screw-On |
| Coating | Absotech |
| Hole Diameter | 4.4 |
| Corner Angle | 80 |
| Primary Workpiece Material | Stainless Steel |
| Insert Style | CPMT |
| Insert Size | 321 |
| Insert Thickness | 0.1252 |
