Sumitomo
19R5BPX
CCMT32.52EMU-AC6020M
Specifications

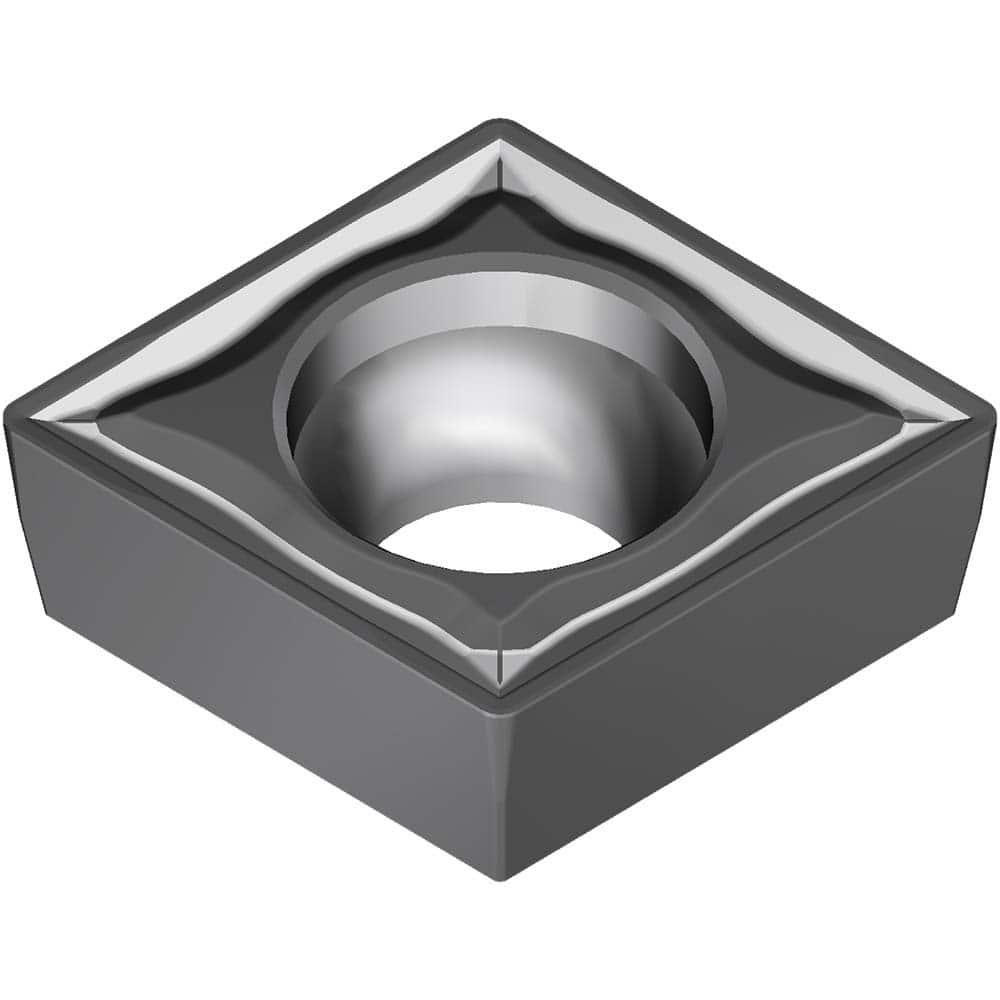

| Short Description | CCMT32.52EMU Grade AC6020M Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.3819 |
| Inscribed Circle Diameter | 0.375 |
| Relief Angle | 7 |
| Tolerance Class | M |
| Series | AC6000M |
| Coating Process Type | CVD |
| Insert Holding Method | Screw-On |
| Coating | Absotech |
| Hole Diameter | 4.4 |
| Corner Angle | 80 |
| Primary Workpiece Material | Stainless Steel |
| Insert Style | CCMT |
| Insert Size | 32.52 |
| Insert Thickness | 0.1563 |
