Sumitomo
19R5CPY
WNMG331EEF-AC6020M
Specifications

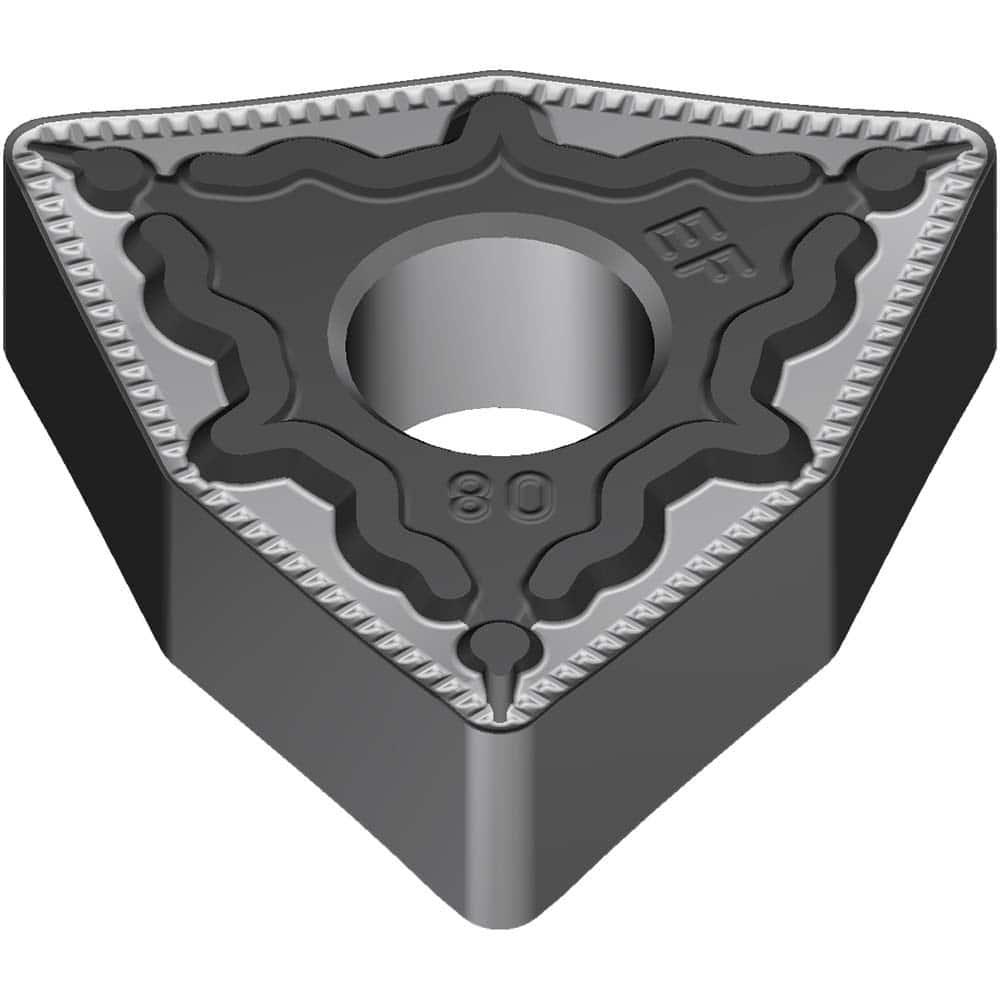

| Short Description | WNMG331EEF Grade AC6020M Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.2559 |
| Inscribed Circle Diameter | 0.375 |
| Relief Angle | 0 |
| Tolerance Class | M |
| Series | AC6000M |
| Coating Process Type | CVD |
| Insert Holding Method | Pin & Clamp |
| Coating | Absotech |
| Hole Diameter | 3.81 |
| Corner Angle | 80 |
| Primary Workpiece Material | Stainless Steel |
| Insert Style | WNMG |
| Insert Size | 331 |
| Insert Thickness | 0.1874 |
