Sumitomo
19R5DCV
DCMT21.52EGU-AC6020M
Specifications

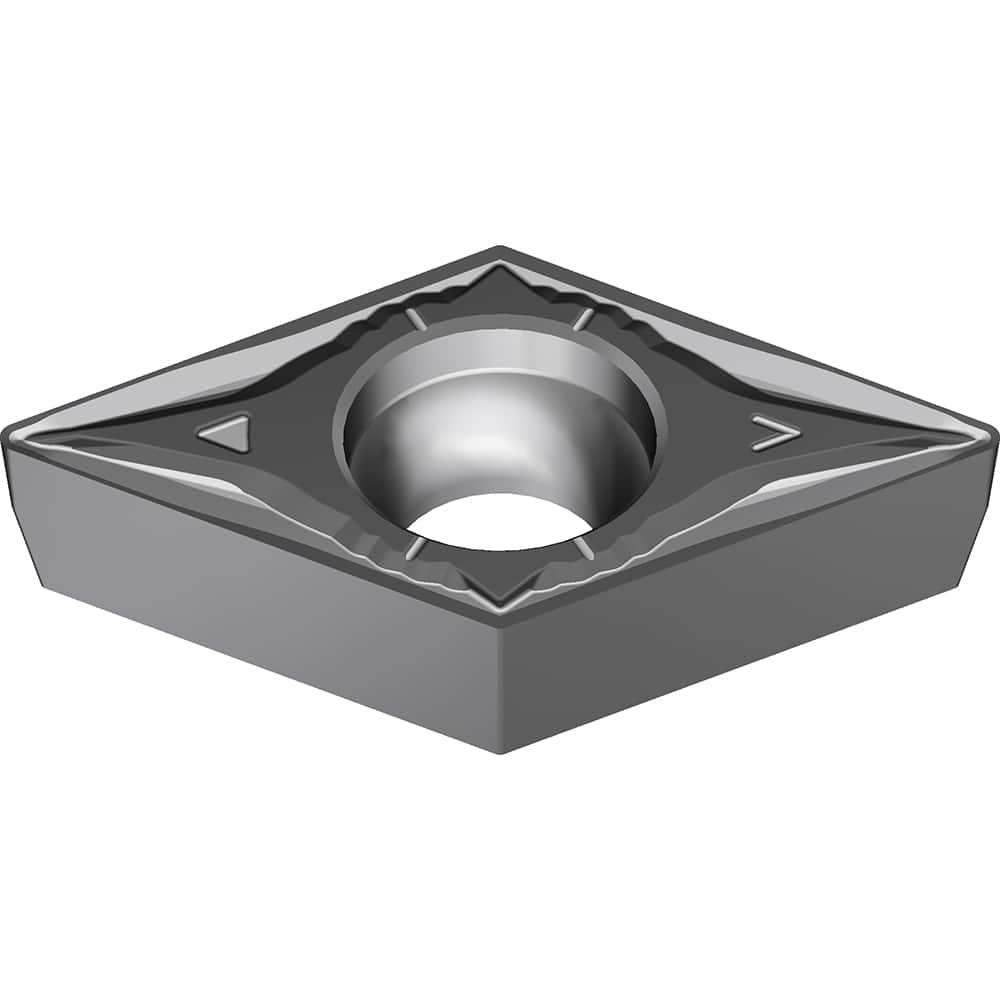

| Short Description | DCMT21.52EGU Grade AC6020M Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.3031 |
| Inscribed Circle Diameter | 0.25 |
| Relief Angle | 7 |
| Tolerance Class | M |
| Series | AC6000M |
| Coating Process Type | CVD |
| Insert Holding Method | Screw-On |
| Coating | Absotech |
| Hole Diameter | 2.8 |
| Corner Angle | 55 |
| Primary Workpiece Material | Stainless Steel |
| Insert Style | DCMT |
| Insert Size | 21.52 |
| Insert Thickness | 0.0937 |
