Sumitomo
19T1310
RCMX100300-AC4010K
Specifications

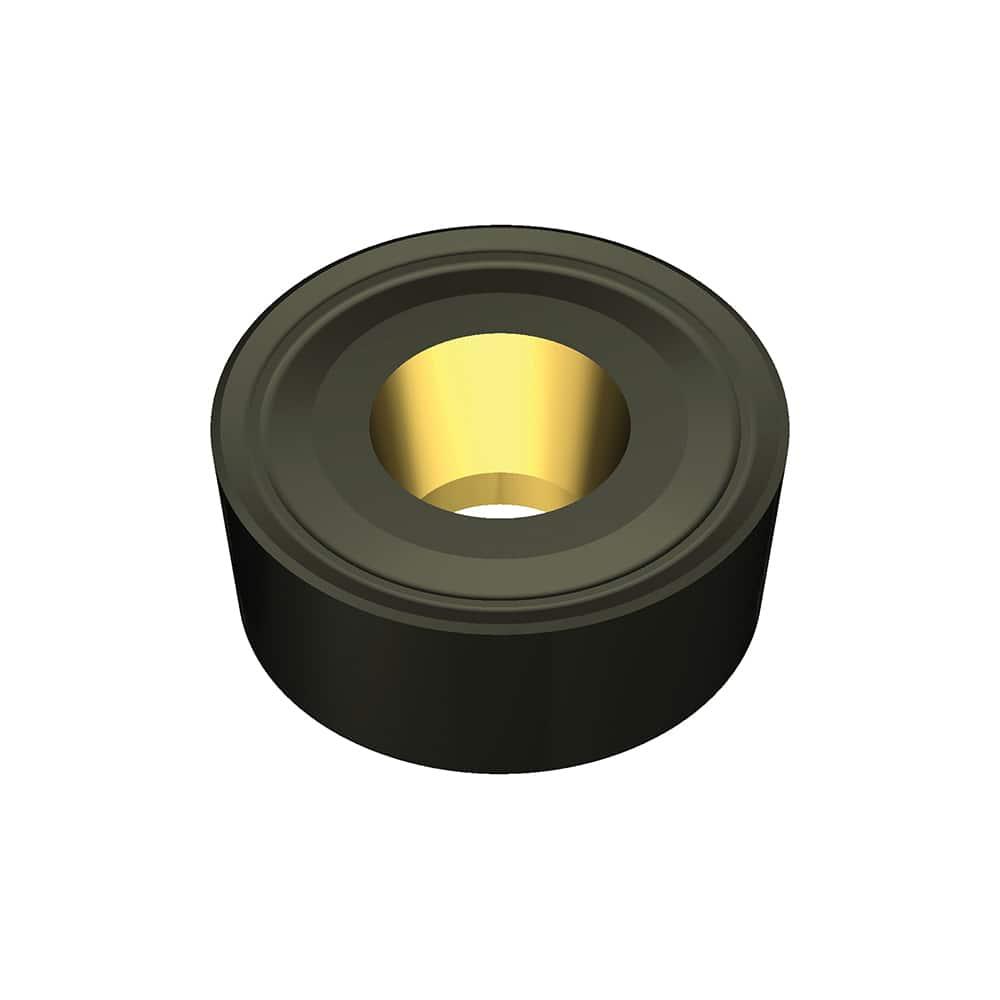

| Short Description | RCMX100300 Grade AC4010K Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0 |
| Inscribed Circle Diameter | 0.3937 |
| Relief Angle | 7 |
| Tolerance Class | M |
| Series | AC4010K |
| Coating Process Type | CVD |
| Insert Holding Method | Screw-On |
| Coating | Absotech |
| Hole Diameter | 3.6 |
| Primary Workpiece Material | Cast Iron |
| Insert Style | RCMX |
| Insert Size | 100300 |
| Insert Thickness | 0.1252 |
