Sumitomo
19T2BPC
CCMT21.51ESU-AC4015K
Specifications

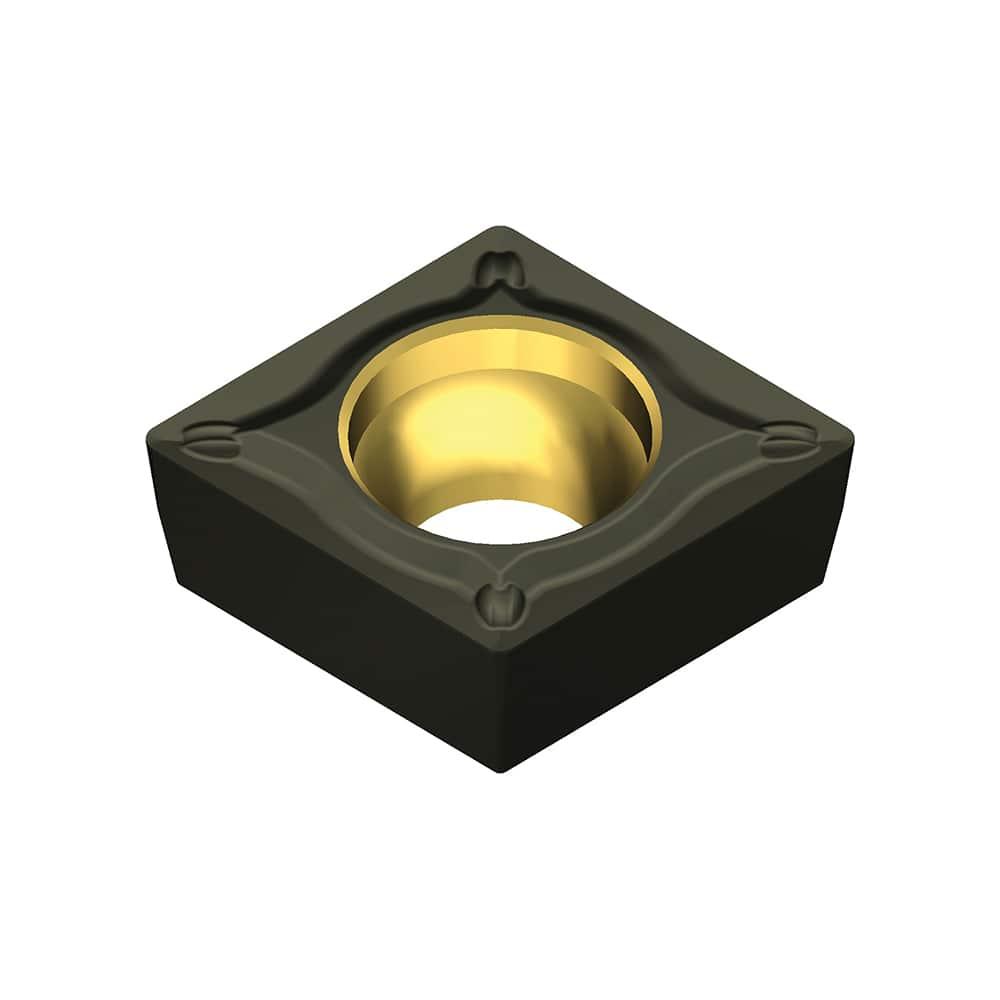

| Short Description | CCMT21.51ESU Grade AC4015K Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.252 |
| Inscribed Circle Diameter | 0.25 |
| Relief Angle | 7 |
| Tolerance Class | M |
| Series | AC4015K |
| Coating Process Type | CVD |
| Insert Holding Method | Screw-On |
| Coating | Absotech |
| Hole Diameter | 2.8 |
| Corner Angle | 80 |
| Primary Workpiece Material | Cast Iron |
| Insert Style | CCMT |
| Insert Size | 21.51 |
| Insert Thickness | 0.0937 |
