Sumitomo
19T2BQM
DCMA32.52-AC4015K
Specifications

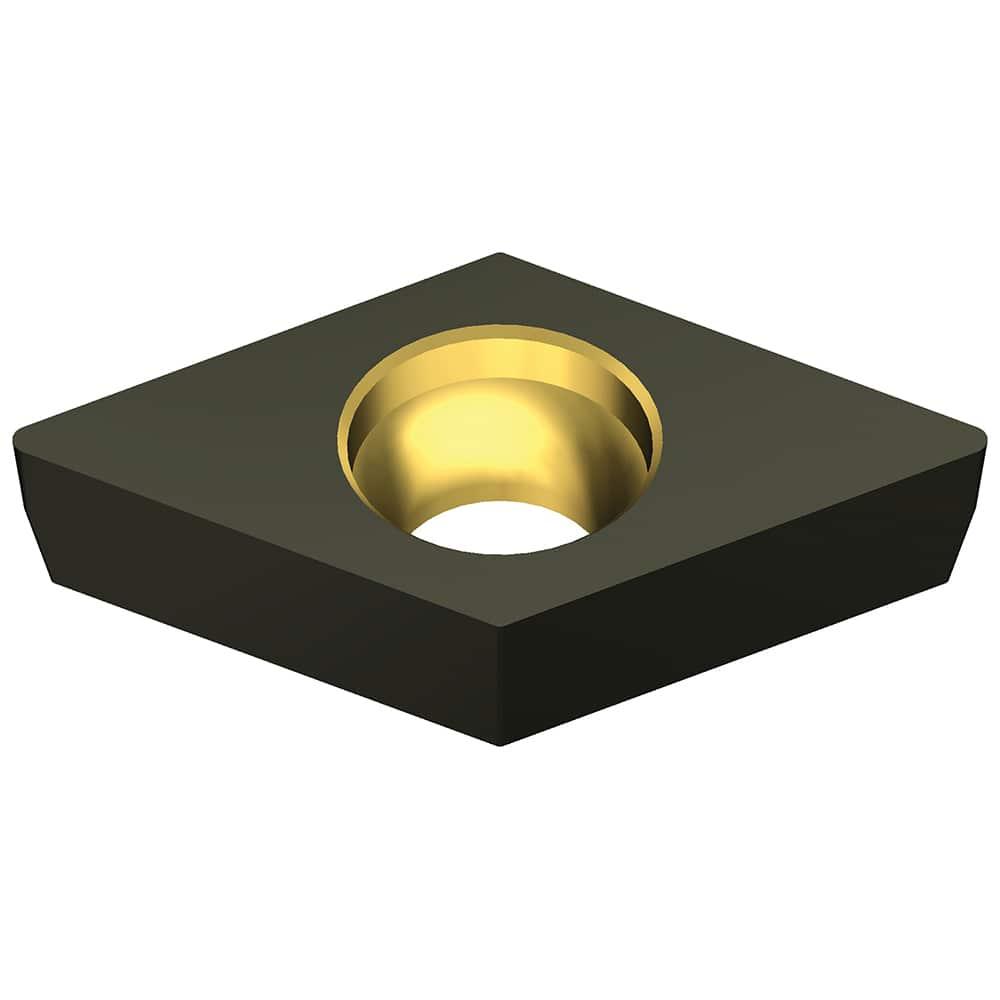

| Short Description | DCMA32.52 Grade AC4015K Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.4567 |
| Inscribed Circle Diameter | 0.375 |
| Relief Angle | 7 |
| Tolerance Class | M |
| Series | AC4015K |
| Coating Process Type | CVD |
| Insert Holding Method | Screw-On |
| Coating | Absotech |
| Hole Diameter | 4.4 |
| Corner Angle | 55 |
| Primary Workpiece Material | Cast Iron |
| Insert Style | DCMA |
| Insert Size | 32.52 |
| Insert Thickness | 0.1563 |
