Sumitomo
19T2CAT
VNMG332EGZ-AC4015K
Specifications

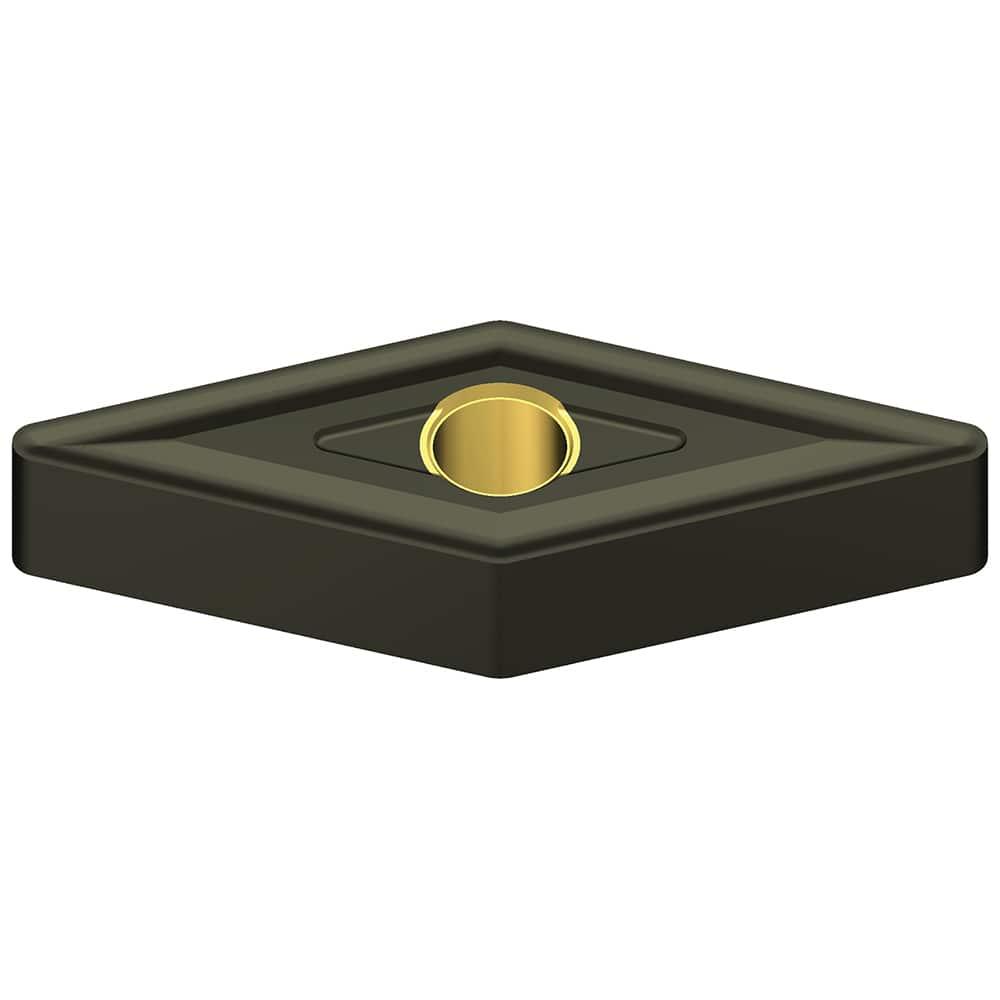

| Short Description | VNMG332EGZ Grade AC4015K Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.6535 |
| Inscribed Circle Diameter | 0.375 |
| Relief Angle | 0 |
| Tolerance Class | M |
| Series | AC4015K |
| Coating Process Type | CVD |
| Insert Holding Method | Pin & Clamp |
| Coating | Absotech |
| Hole Diameter | 3.81 |
| Corner Angle | 35 |
| Primary Workpiece Material | Cast Iron |
| Insert Style | VNMG |
| Insert Size | 332 |
| Insert Thickness | 0.1874 |
