Sumitomo
19T3111

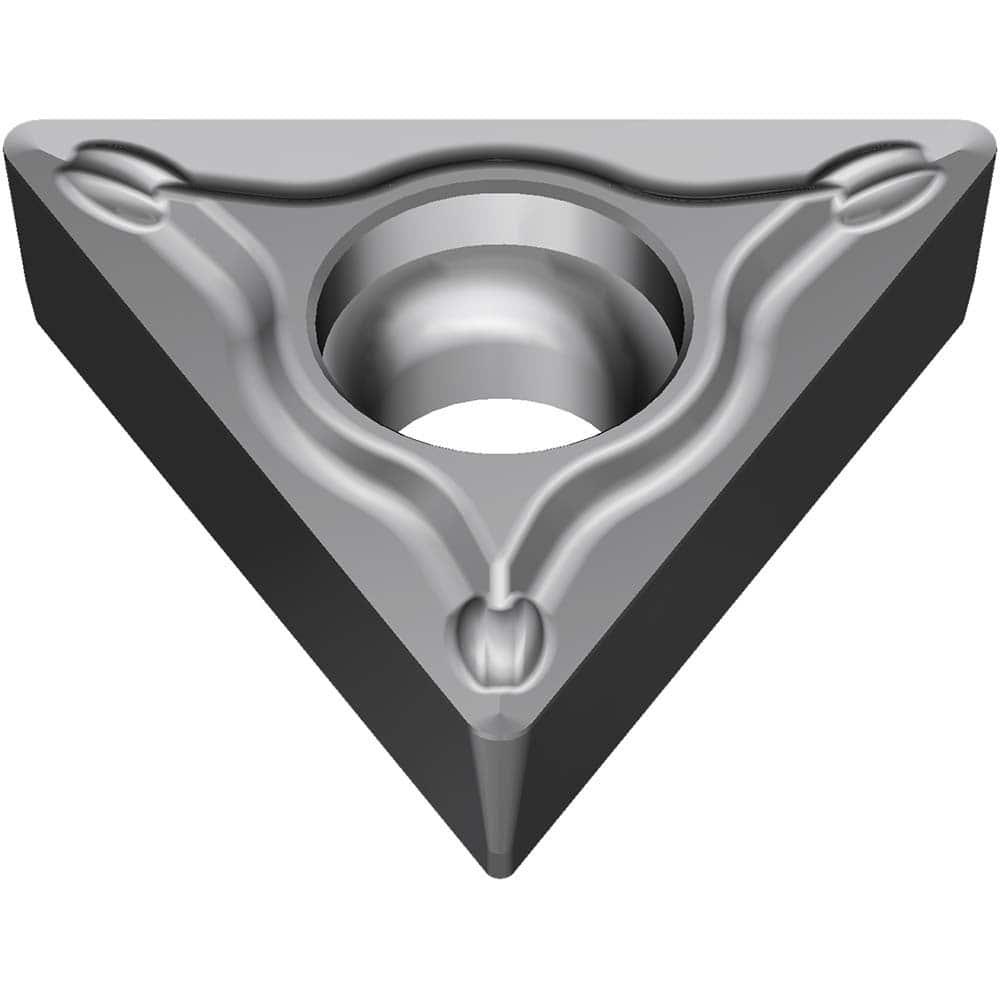

TPMT332ESU-AC8035P
Specifications
| Short Description | TPMT332ESU Grade AC8035P Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.6496 |
| Inscribed Circle Diameter | 0.375 |
| Relief Angle | 11 |
| Tolerance Class | M |
| Series | AC8000P |
| Coating Process Type | CVD |
| Insert Holding Method | Screw-On |
| Coating | Absotech |
| Hole Diameter | 4.4 |
| Corner Angle | 60 |
| Primary Workpiece Material | Steel |
| Insert Style | TPMT |
| Insert Size | 332 |
| Insert Thickness | 0.1874 |
