Sumitomo
19T3375
VNMG332EUP-AC8035P
Specifications

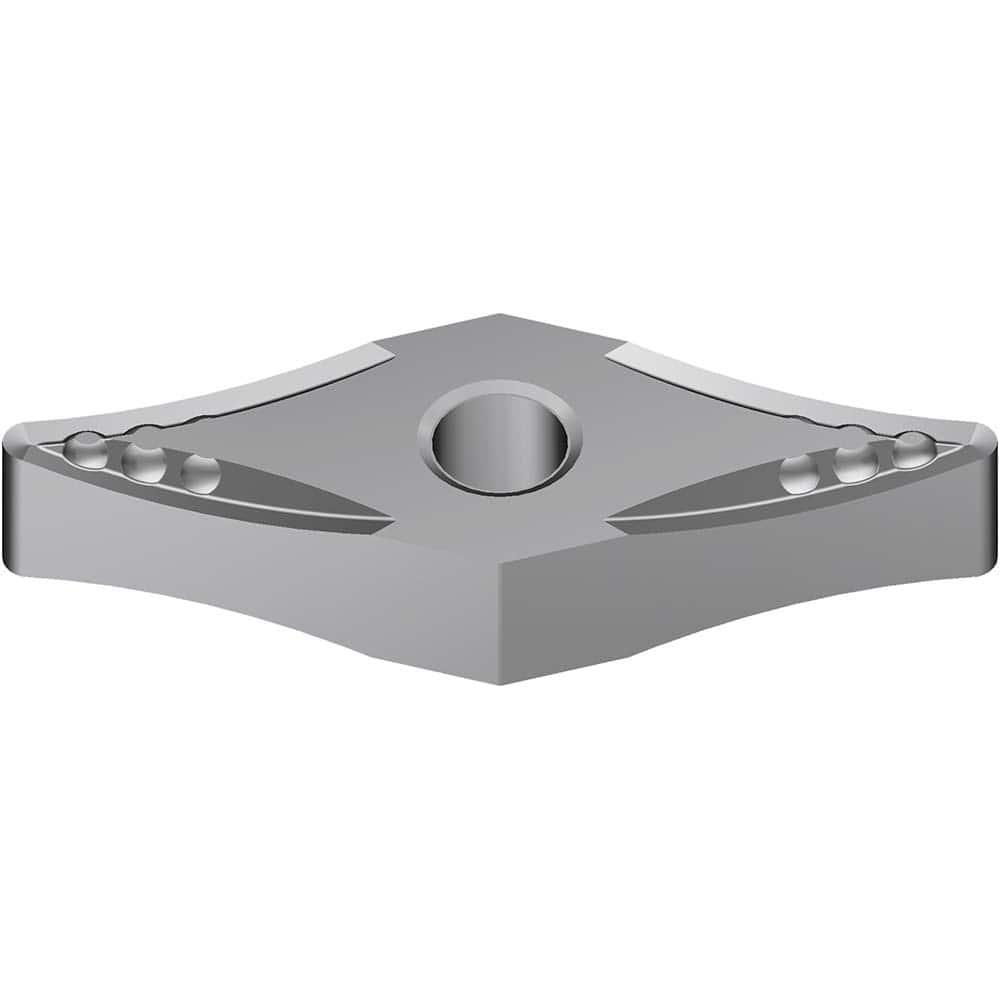

| Short Description | VNMG332EUP Grade AC8035P Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.6535 |
| Inscribed Circle Diameter | 0.375 |
| Relief Angle | 0 |
| Tolerance Class | M |
| Series | AC8000P |
| Coating Process Type | CVD |
| Insert Holding Method | Pin & Clamp |
| Coating | Absotech |
| Hole Diameter | 3.81 |
| Corner Angle | 35 |
| Primary Workpiece Material | Steel |
| Insert Style | VNMG |
| Insert Size | 332 |
| Insert Thickness | 0.1874 |
