Sumitomo
19T3896
DNMG542ENG-AC8035P
Specifications

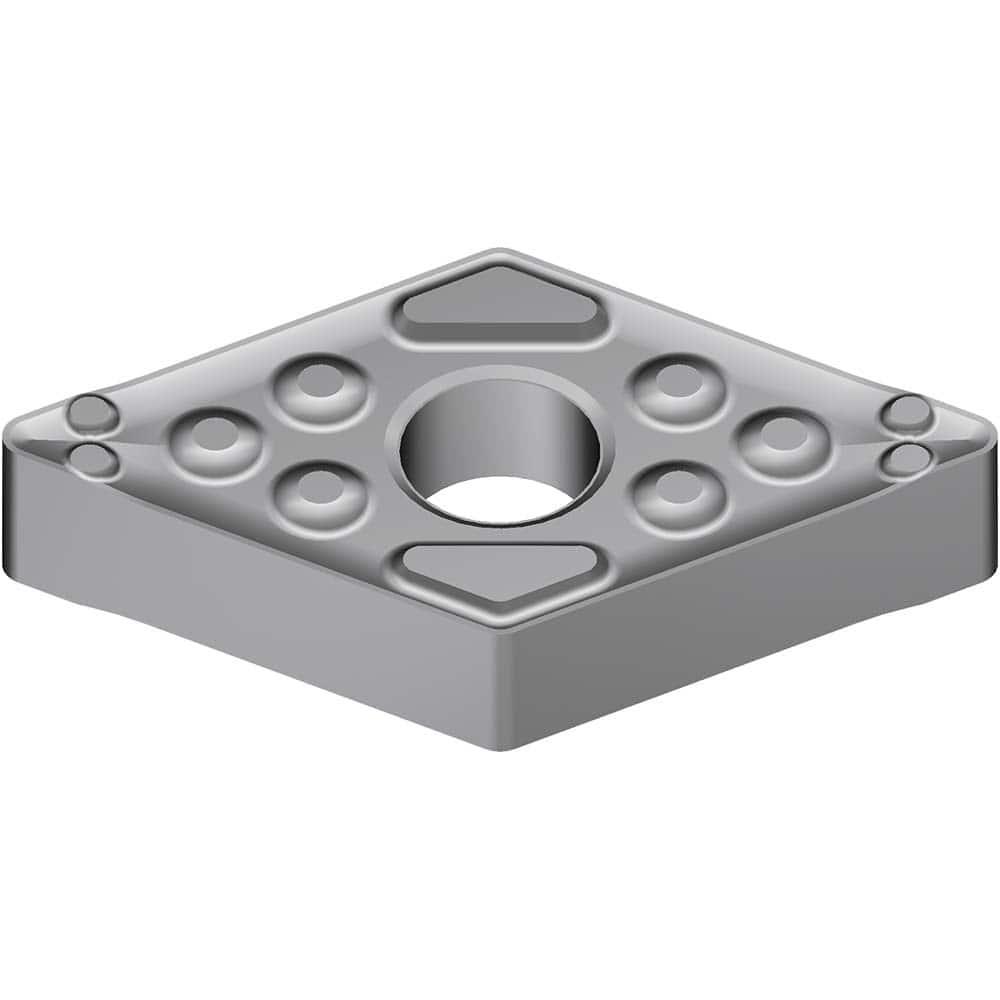

| Short Description | DNMG542ENG Grade AC8035P Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.7638 |
| Inscribed Circle Diameter | 0.625 |
| Relief Angle | 0 |
| Tolerance Class | M |
| Series | AC8000P |
| Coating Process Type | CVD |
| Insert Holding Method | Pin & Clamp |
| Coating | Absotech |
| Hole Diameter | 6.35 |
| Corner Angle | 55 |
| Primary Workpiece Material | Steel |
| Insert Style | DNMG |
| Insert Size | 542 |
| Insert Thickness | 0.25 |
