Sumitomo
19T3CLU
TPMT1.81.50.5ELB-AC8035P
Specifications

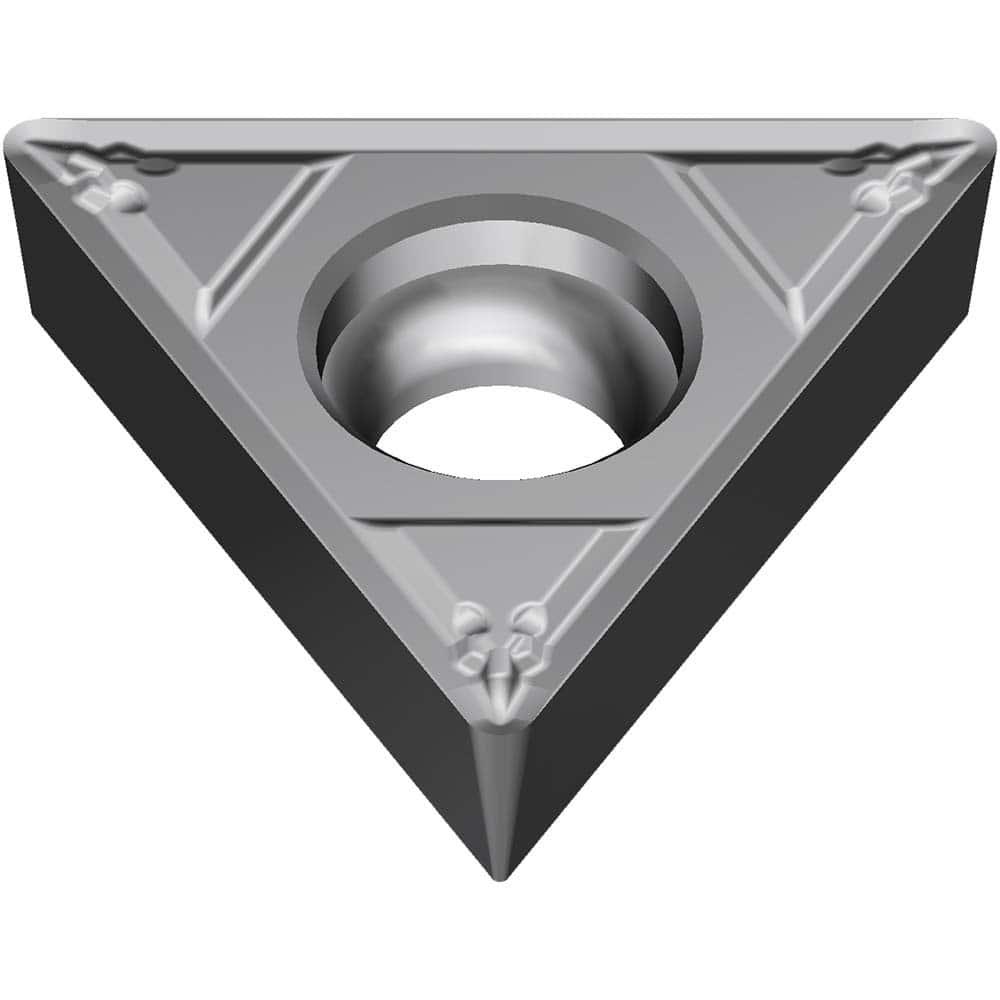

| Short Description | TPMT1.81.50.5ELB Grade AC8035P Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.378 |
| Inscribed Circle Diameter | 0.2189 |
| Relief Angle | 11 |
| Tolerance Class | M |
| Series | AC8000P |
| Coating Process Type | CVD |
| Insert Holding Method | Screw-On |
| Coating | Absotech |
| Hole Diameter | 2.8 |
| Corner Angle | 60 |
| Primary Workpiece Material | Steel |
| Insert Style | TPMT |
| Insert Size | 1.81.50.5 |
| Insert Thickness | 0.0937 |
