Sumitomo
19T3W2E
CCMT431ENK-AC8035P
Specifications

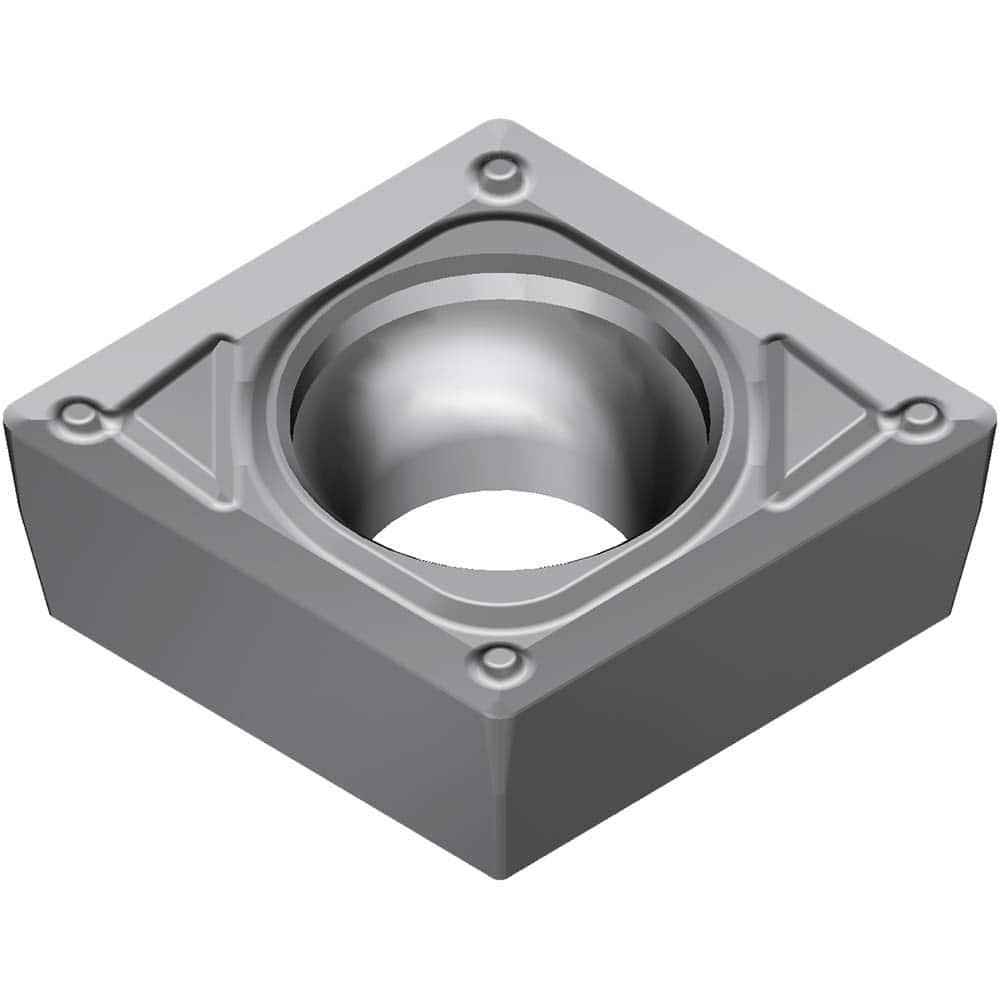

| Short Description | CCMT431ENK Grade AC8035P Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.5079 |
| Inscribed Circle Diameter | 0.5 |
| Relief Angle | 7 |
| Tolerance Class | M |
| Series | AC8000P |
| Coating Process Type | CVD |
| Insert Holding Method | Screw-On |
| Coating | Absotech |
| Hole Diameter | 5.5 |
| Corner Angle | 80 |
| Primary Workpiece Material | Steel |
| Insert Style | CCMT |
| Insert Size | 431 |
| Insert Thickness | 0.1874 |
