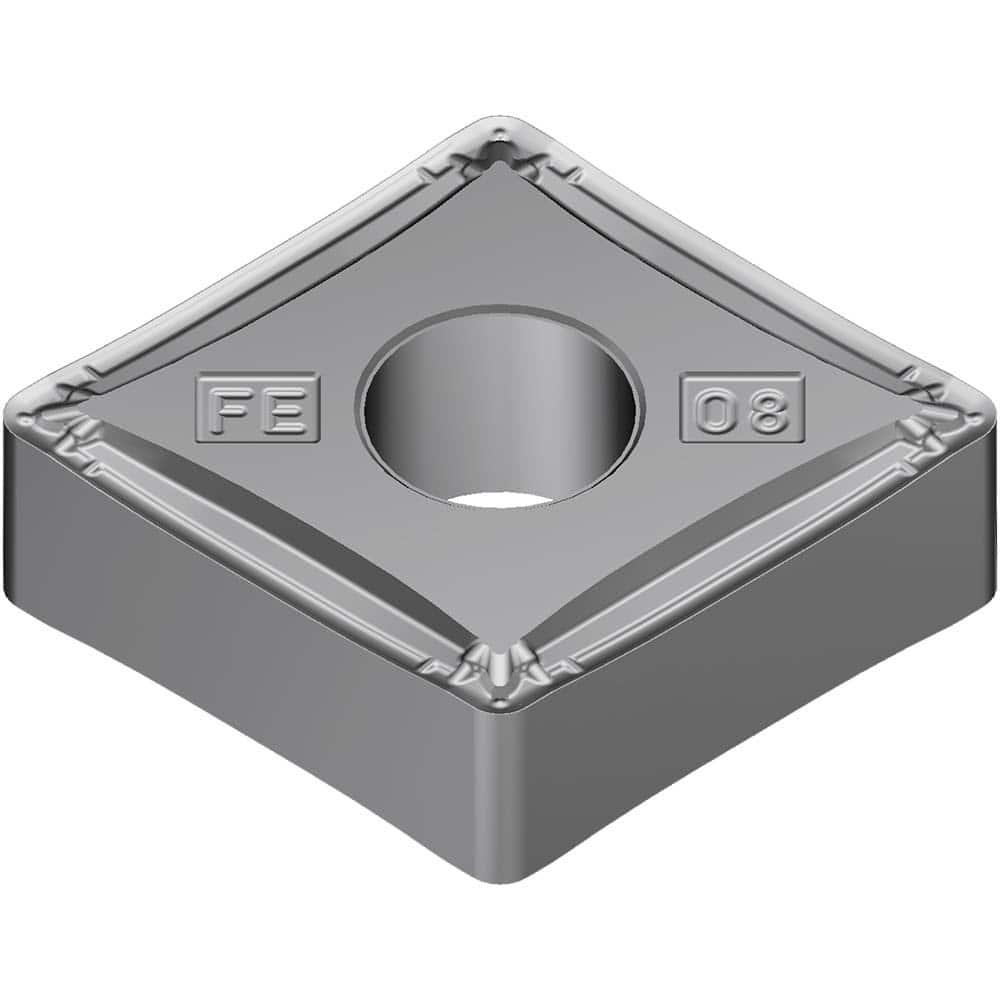

Sumitomo
19T4CSY
CNMG430.5EFE-AC8015P
Specifications
| Short Description | CNMG430.5EFE Grade AC8015P Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.5079 |
| Inscribed Circle Diameter | 0.5 |
| Relief Angle | 0 |
| Tolerance Class | M |
| Series | AC8000P |
| Coating Process Type | CVD |
| Insert Holding Method | Pin & Clamp |
| Coating | Absotech |
| Hole Diameter | 5.16 |
| Corner Angle | 80 |
| Primary Workpiece Material | Steel |
| Insert Style | CNMG |
| Insert Size | 430.5 |
| Insert Thickness | 0.1874 |
