Sumitomo
19T5BWV
TPMT630.5ESU-AC5015S
Specifications

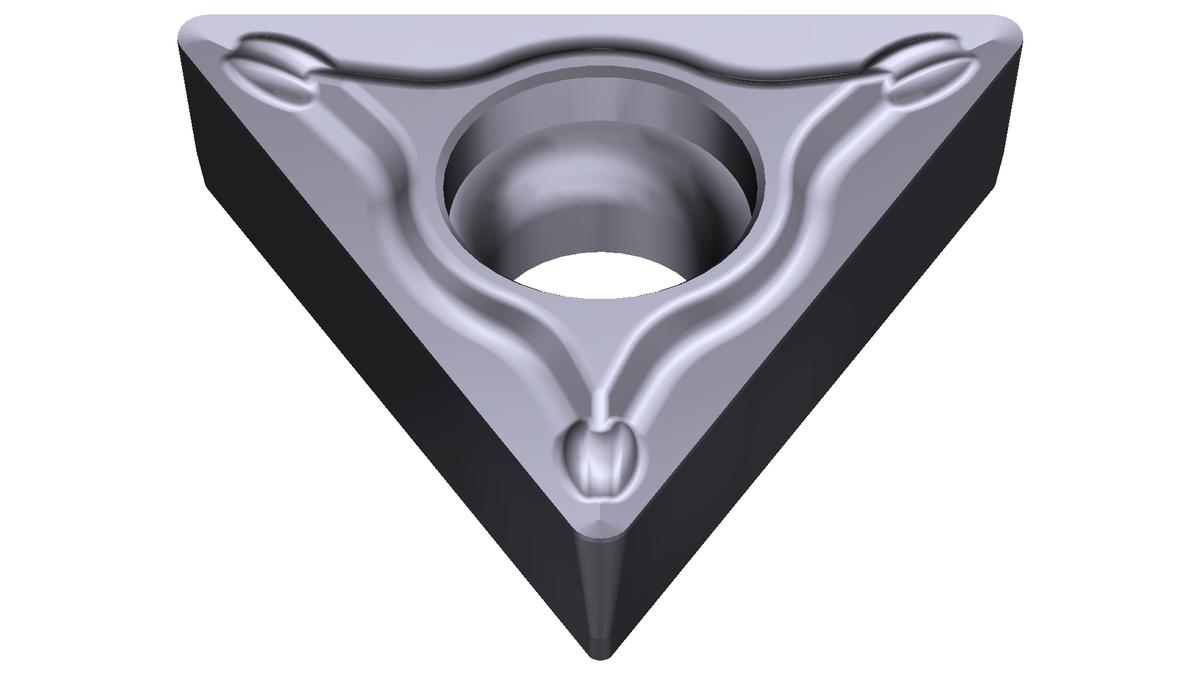

| Short Description | TPMT630.5 ESU Grade AC5015S Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.3228 |
| Inscribed Circle Diameter | 0.1874 |
| Relief Angle | 11 |
| Tolerance Class | M |
| Series | AC5000S |
| Coating Process Type | PVD |
| Insert Holding Method | Screw-On |
| Coating | Absotech |
| Hole Diameter | 2.4 |
| Corner Angle | 60 |
| Primary Workpiece Material | Heat Resistant Alloy |
| Insert Style | TPMT |
| Insert Size | 630.5 |
| Insert Thickness | 0.0937 |
| Secondary Workpiece Material | Stainless Steel |
