Sumitomo
19T6113
CPMT2.51.52ESU-AC5025S
Specifications

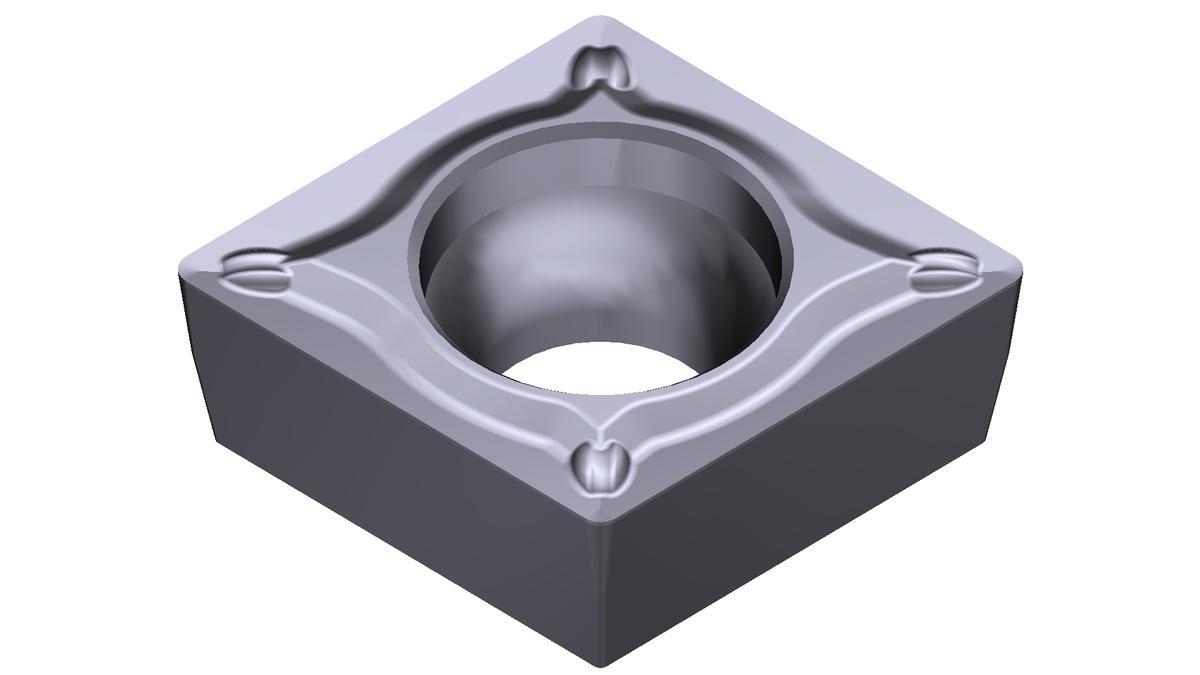

| Short Description | CPMT2.51.52 ESU Grade AC5025S Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.315 |
| Inscribed Circle Diameter | 0.3126 |
| Relief Angle | 11 |
| Tolerance Class | M |
| Series | AC5000S |
| Coating Process Type | PVD |
| Insert Holding Method | Screw-On |
| Coating | Absotech |
| Hole Diameter | 3.4 |
| Corner Angle | 80 |
| Primary Workpiece Material | Heat Resistant Alloy |
| Insert Style | CPMT |
| Insert Size | 2.51.52 |
| Insert Thickness | 0.0937 |
| Secondary Workpiece Material | Stainless Steel |
