Sumitomo
19W1834

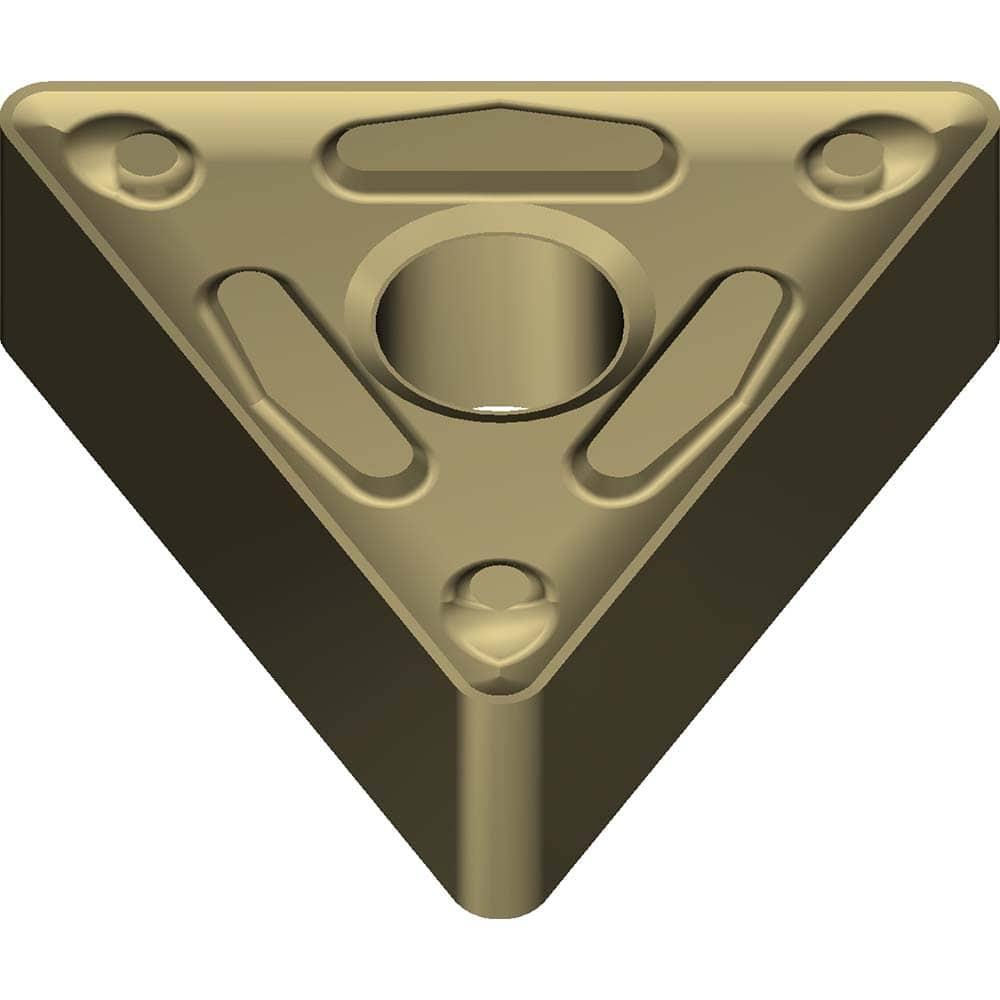

TNMG542ENG-AC8020P
Specifications
| Short Description | TNMG542ENG Grade AC8020P Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 1.0827 |
| Inscribed Circle Diameter | 0.625 |
| Relief Angle | 0 |
| Tolerance Class | M |
| Series | AC8000P |
| Coating Process Type | CVD |
| Insert Holding Method | Pin & Clamp |
| Coating | Absotech |
| Hole Diameter | 6.35 |
| Corner Angle | 60 |
| Primary Workpiece Material | Steel |
| Insert Style | TNMG |
| Insert Size | 542 |
| Insert Thickness | 0.3126 |
| Secondary Workpiece Material | Steel |
