Sumitomo
19W1BXH
SNMM856EHU-AC8020P
Specifications

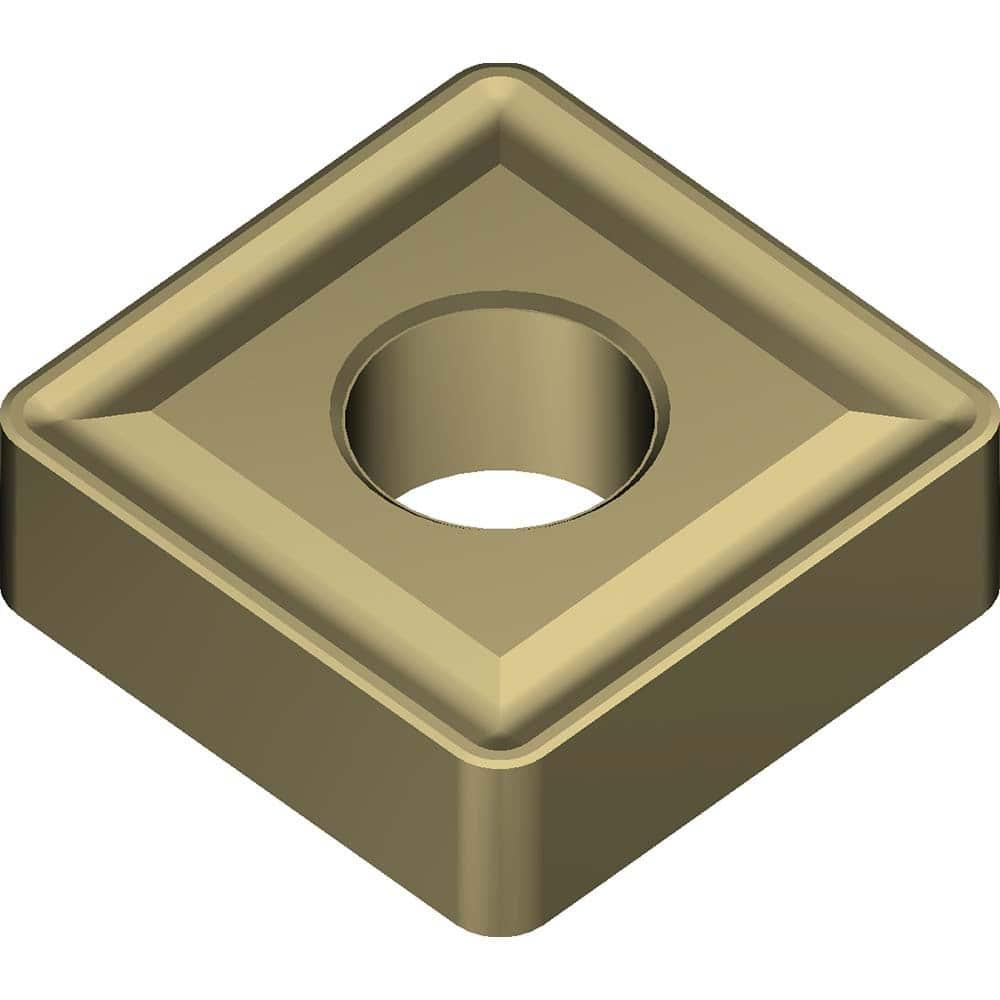

| Short Description | SNMM856EHU Grade AC8020P Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 1 |
| Inscribed Circle Diameter | 1 |
| Relief Angle | 0 |
| Tolerance Class | M |
| Series | AC8000P |
| Coating Process Type | CVD |
| Insert Holding Method | Pin & Clamp |
| Coating | Absotech |
| Hole Diameter | 9.12 |
| Corner Angle | 90 |
| Primary Workpiece Material | Steel |
| Insert Style | SNMM |
| Insert Size | 856 |
| Insert Thickness | 0.3126 |
| Secondary Workpiece Material | Steel |
