Sumitomo
19W1CTV
TNMG330.5EFE-AC8020P
Specifications

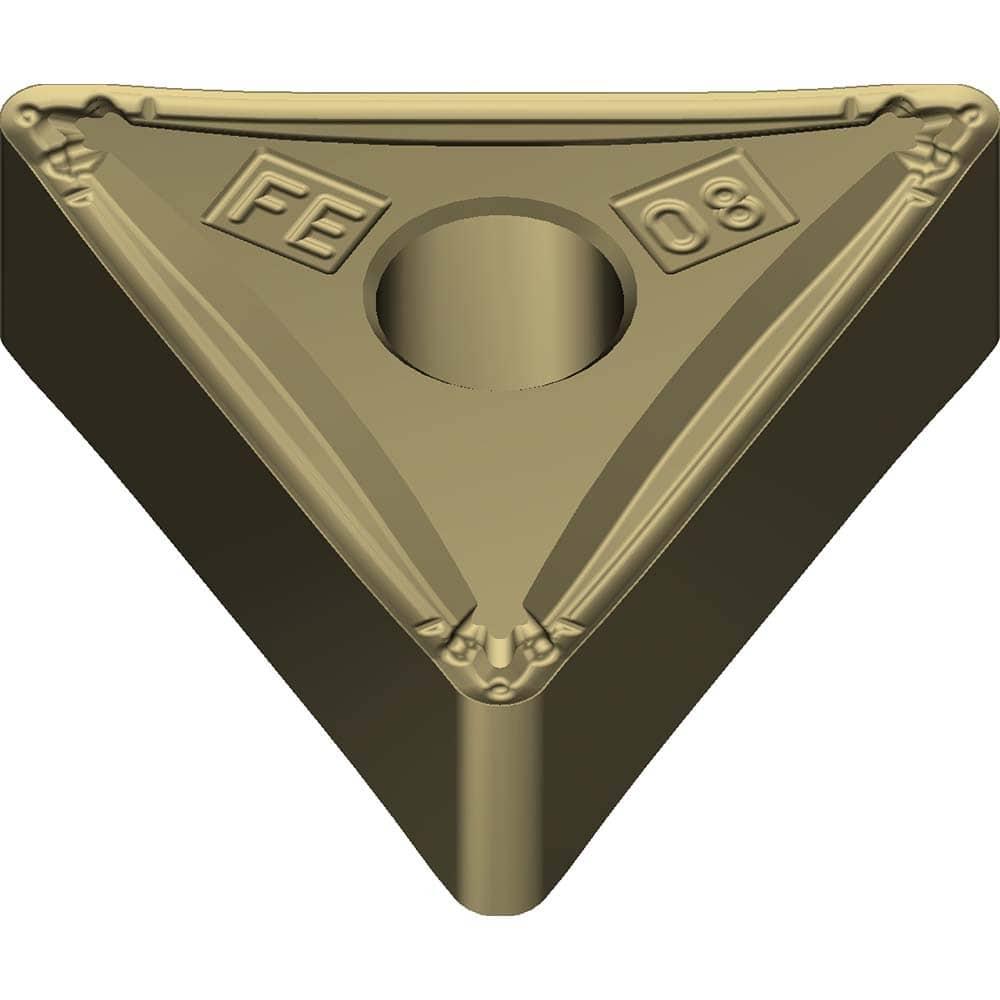

| Short Description | TNMG330.5EFE Grade AC8020P Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.6496 |
| Inscribed Circle Diameter | 0.375 |
| Relief Angle | 0 |
| Tolerance Class | M |
| Series | AC8000P |
| Coating Process Type | CVD |
| Insert Holding Method | Pin & Clamp |
| Coating | Absotech |
| Hole Diameter | 3.81 |
| Corner Angle | 60 |
| Primary Workpiece Material | Steel |
| Insert Style | TNMG |
| Insert Size | 330.5 |
| Insert Thickness | 0.1874 |
| Secondary Workpiece Material | Steel |
