Sumitomo
19W2APL
DNMG432ESU-AC5005S
Specifications

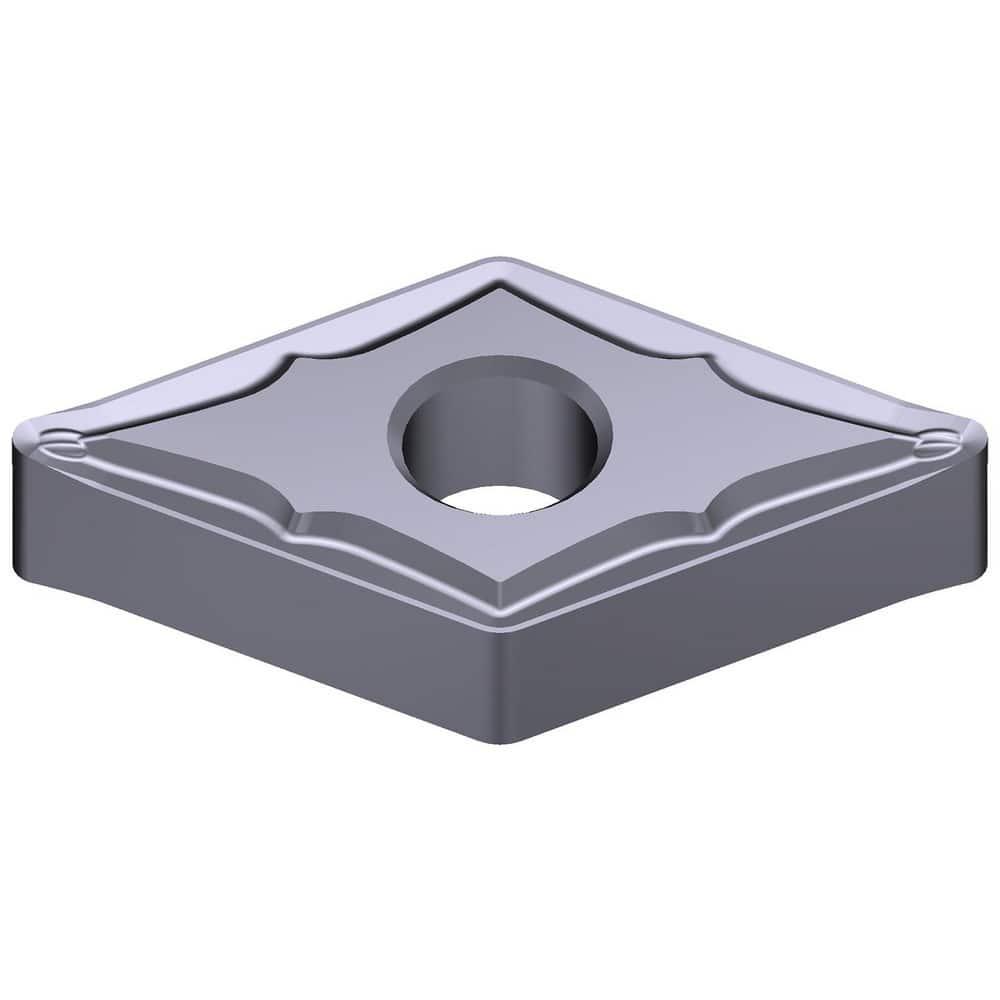

| Short Description | DNMG432ESU Grade AC5005S Carbide Turning Insert |
|---|---|
| Cutting Edge Length | 0.6102 |
| Inscribed Circle Diameter | 0.5 |
| Relief Angle | 0 |
| Tolerance Class | M |
| Series | AC5000S |
| Coating Process Type | PVD |
| Insert Holding Method | Pin & Clamp |
| Coating | Absotech |
| Hole Diameter | 5.16 |
| Corner Angle | 55 |
| Primary Workpiece Material | Heat Resistant Alloy |
| Insert Style | DNMG |
| Insert Size | 432 |
| Insert Thickness | 0.1874 |
| Secondary Workpiece Material | Heat Resistant Alloy |
