Sumitomo
2600ALG
GNDLSR2020K-316
Specifications
| Series | GND |
|---|---|
| Short Description | Groove Width 3mm, 3.18mm, 0.118", 0.125", Max Groove Depth 16mm, 90-deg Deep OD Grooving Tool |
| Insert Width | 0.1181 |
| Shank Width | 20 |
| Shank Height | 20 |
| Head Length | 25 |
| Insert Compatibility | GCMN3002, 3mm, 3.18mm, 0.118", 0.125" |
| Insert Holding Method | Clamp |

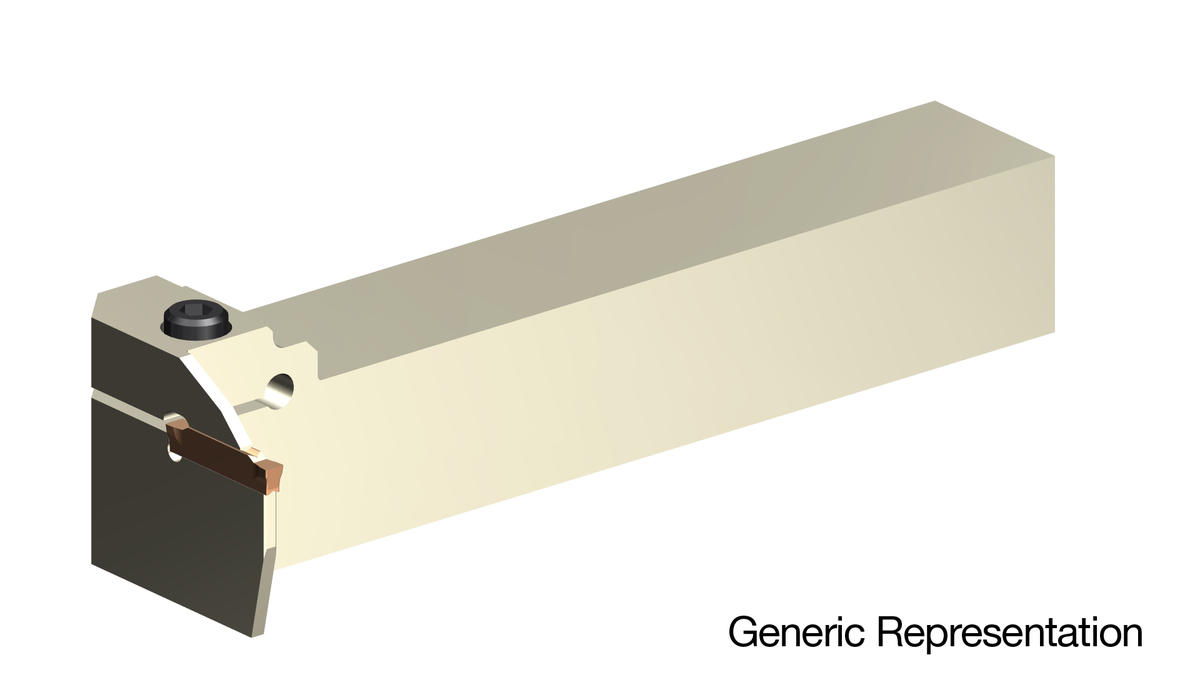

| Toolholder Style | 90-deg Deep OD Grooving Tool |
| Overall Length (OAL) | 123.5 |
