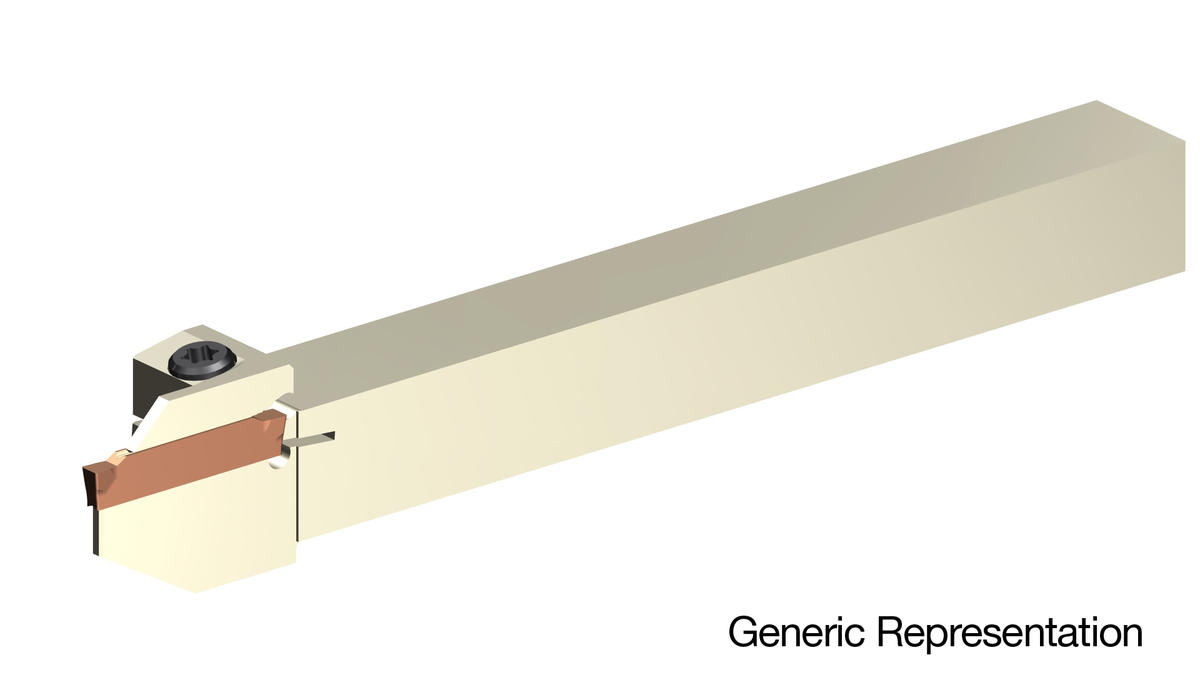

Sumitomo
2600AUE
GNDLR1212JX-212.5
Specifications
| Series | GND |
|---|---|
| Short Description | Groove Width 2mm, 2.39mm, 0.078", 0.094", Max Groove Depth 12.5mm, Deep OD Grooving Tool |
| Insert Width | 0.0787 |
| Shank Width | 12 |
| Shank Height | 12 |
| Head Length | 22 |
| Insert Compatibility | GCMN2002, 2mm, 2.39mm, 0.078", 0.094" |
| Insert Holding Method | Clamp |
| Toolholder Style | Deep OD Grooving Tool |
| Overall Length (OAL) | 120 |
