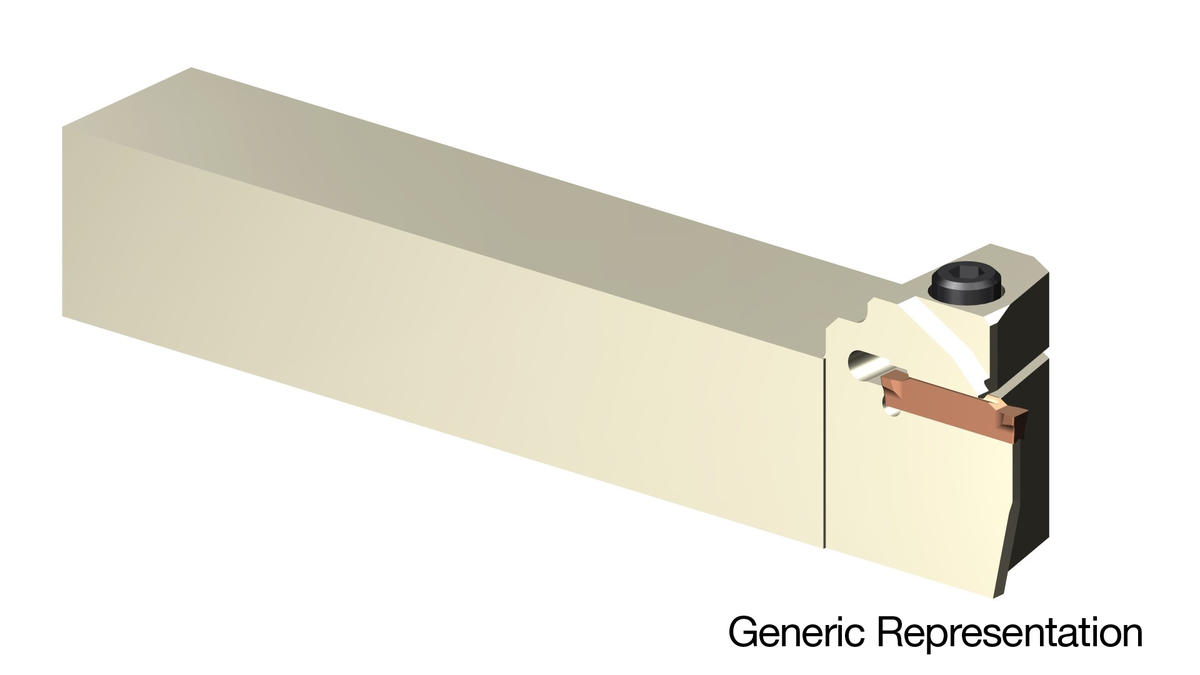

Sumitomo
2600AWD
GNDSL2525M-206
Specifications
| Series | GND |
|---|---|
| Short Description | Groove Width 2mm, 2.39mm, 0.078", 0.094", Max Groove Depth 6mm, Shallow OD Grooving Tool |
| Insert Width | 0.0787 |
| Shank Width | 25 |
| Shank Height | 25 |
| Head Length | 30 |
| Insert Compatibility | GCMN2002, 2mm, 2.39mm, 0.078", 0.094" |
| Insert Holding Method | Clamp |
| Toolholder Style | Shallow OD Grooving Tool |
| Overall Length (OAL) | 150 |
