Sumitomo
2600AWN
GNDSR2525M-510
Specifications
| Series | GND |
|---|---|
| Short Description | Groove Width 4.75mm, 5mm, 0.187", 0.197", Max Groove Depth 10mm, Shallow OD Grooving Tool |
| Insert Width | 0.1969 |
| Shank Width | 25 |
| Shank Height | 25 |
| Head Length | 34 |
| Insert Compatibility | GCMN5002, 4.75mm, 5mm, 0.187", 0.197" |
| Insert Holding Method | Clamp |

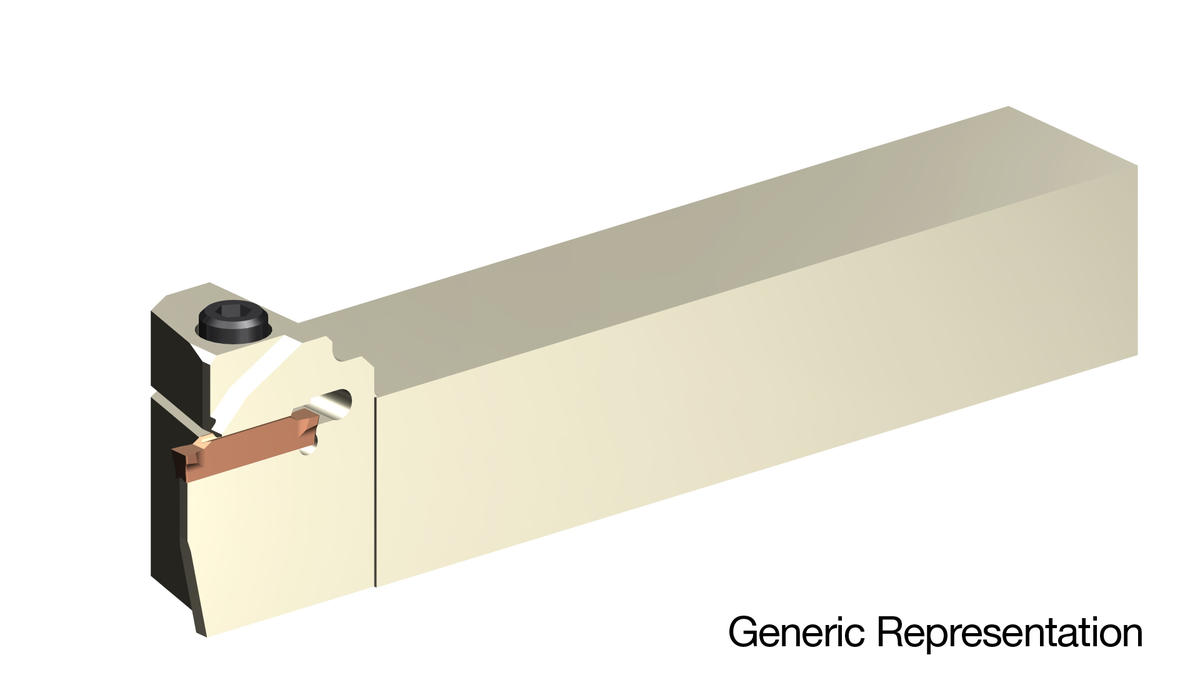

| Toolholder Style | Shallow OD Grooving Tool |
| Overall Length (OAL) | 150 |
